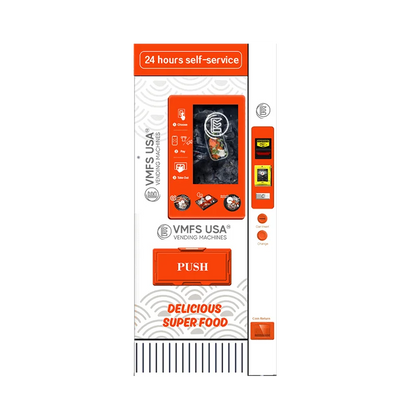

mini hot food vending machine
Mini máquina expendedora de comida caliente
Mini máquina expendedora de comida caliente

3D Product Renderings

Every product image you see here is a high-fidelity 3D rendering, not a studio photograph. Each machine is modeled to match the exact real-world unit we ship. True dimensions, finishes, screen sizes, and hardware down to the payment terminal and delivery system. Rendering lets us show every configuration cleanly and consistently, so what you see on screen is an accurate preview of the actual machine that arrives at your door plug-and-play ready.

Lead Time 6 - 12 Weeks (Depends on Availability)

Mini máquina expendedora de comida caliente

$12,450.00
$1,500–$3,000/mo* Est. monthly revenue
3–6 months* ROI payback
from $346/mo Finance & own it
Based on operator-reported data

SKU: fvm-mini

La mini máquina expendedora de comida caliente está diseñada para servir comidas calientes y listas para comer a pedido mediante un sistema totalmente automatizado. Diseñada para lugares que requieren un servicio de comida rápido y sin supervisión, combina almacenamiento refrigerado, calentamiento por microondas, controles de seguridad alimentaria y conectividad en la nube en un tamaño compacto, ideal para oficinas, escuelas, hospitales, fábricas y centros de transporte.

      Popular Upgrades
      Machine Finder

      Not sure if this is the right machine?

      Answer 6 quick questions — we'll match you with the best fit from our full catalog.

      Take the quiz 60 sec  ·  Free

      Pairs well with

      Configuration Handled Upfront

      Delivery Coordinated To Your Location

      1-Year Warranty Included

      Support For Setup And Install

      30 Day Satisaction waranty

      Download Brochure

      mini hot food vending machine
      Mini hot food vending machine with built-in microwave

      Mini Hot Food Vending Machine

      The VMFS mini hot food vending machine is a compact food vending machine built for locations that need hot meals on demand but do not have the floor space for a full-size unit. Built-in microwave heating serves every meal in approximately 60 seconds after purchase. Refrigerated cold storage holds up to 24 boxed meals from 39F to 77F. A 21.5 inch HD touchscreen handles ordering, payment, and advertising from a footprint that fits where larger machines cannot.

      Add to Cart Build Your Food Vending System
      60 SecondsMicrowave heat after purchase, fresh every time
      24 MealsCompact capacity for tight-space locations
      39°F to 149°FRefrigerated cold storage until purchase
      Built-In Microwave, 60 Seconds 24 Meal Capacity Refrigerated 39 to 77F Ozone Disinfection 1 Year Warranty, Extendable Built-In Microwave, 60 Seconds 24 Meal Capacity Refrigerated 39 to 77F Ozone Disinfection 1 Year Warranty, Extendable
      Full specifications

      Mini hot food vending machine specs

      ModelTCN-FFM-2N (V22)
      Slot typeConveyor
      Meal capacity24 boxes
      ProductsHamburger, sandwich, box meal, mexican food, noodles
      FormatCompact floor standing
      Heating systemBuilt-in integrated microwave
      Heat timeApproximately 60 seconds per meal
      Delivery systemInternal conveyor, smooth dispensing path
      ConfirmationSensor based delivery confirmation
      Temperature range39F to 77F
      Cooling systemInverter compressor, foaming insulation, centrifugal fan
      DisinfectionBuilt-in ozone disinfection module
      Storage logicRefrigerated until purchase, heated on order only
      Display21.5 inch HD touchscreen
      PaymentBill, coin, card; optional mobile QR and contactless; MDB compatible
      Dimensions (H x W x D)78.7 x 25.6 x 25.4 in
      Weight400 lbs
      Power2500W
      VoltageAC110-120V / 220-240V, 50/60Hz
      Warranty1 year standard, extended available

      Electrical noteThe unit draws 2500W. On a 110-120V supply confirm the circuit amperage with site management, as a dedicated 20 amp circuit may be required, or run the machine on a 220-240V commercial circuit. No plumbing is required. At 400lbs, liftgate or White Glove delivery is recommended for sites without a loading dock.

      In the box

      Mini Hot Food Vending Machine unit
      Operator manual and guide
      Security keys
      Power cable
      Custom quote
      Built-in operator support

      Every mini food vending operator gets the full VMFS system

      The machine handles the food. The V Systems network handles placement access, food service permits, route growth, and remote management. Four pillars every VMFS operator gets from day one.

      VMFS Cloud

      Remote sales and inventory monitoring

      Track every sale, inventory level, low stock alert, and machine diagnostic from anywhere. The VMFS Cloud dashboard gives operators visibility across one compact food vending machine or an entire fleet. Optional add-on, no monthly software fee on base hardware.

      VPlaced

      Tight-space site matching

      VPlaced identifies the right tight-space locations for your mini hot food vending machine before you commit. Office, school, factory, and hospital access agreements are all evaluated before the machine ships.

      VAdviced

      Food service permits and contracts

      VAdviced structures the placement agreement and permit documentation for unattended food vending in your state and location type. Health department, school, corporate, and factory requirements all handled.

      VMarketed

      Scale your mini food vending route

      VMarketed builds the brand and location pipeline for operators scaling a mini food vending route across multiple tight-space locations.

      Built for locations full-size units cannot serve

      Why operators choose this mini food vending machine

      A full-size vending machine needs floor space, high foot traffic, and a location manager willing to give up a large area of the break room. Most tight-space locations cannot say yes to that. This mini food vending machine needs one outlet, a small footprint, and a location with 20 or more people who need hot meals. That list is much longer.

      Image: compact cabinet front / 21.5 inch touchscreen
      Compact footprint

      Fits where full-size units cannot, hot in 60 seconds

      This mini hot food vending machine is designed for the locations that get passed over by operators running full-size machines: break rooms too small for a standard cabinet, factory floor corridors with limited clearance, school hallways, and hospital staff rooms. Meals are stored cold until the customer pays, then the integrated microwave heats the item to serving temperature in approximately 60 seconds. No pre-warming, no food sitting hot in a holding chamber. Every order is a fresh heat cycle, which keeps quality consistent and means the unit runs unattended for a full day.

      24 meals is the right number for a compact location. A break room of 30 to 50 employees doing one meal a day empties and restocks once daily. For higher volume sites that need a commercial microwave and far more capacity, see the Hot Foods Vending Machine, or browse the full food vending machine collection.

      Full-size unit, will not fit Compact, one outlet
      Image: cold storage interior / ozone module
      Cold storage, 39 to 77F

      Cold storage protection, ozone disinfection, full payment

      Meals are held in refrigerated cold storage from 39F to 77F until purchase. The cooling system uses a high quality foaming insulation layer to lock in cold air and an inverter compressor to maintain a steady 77F. A variable centrifugal fan spreads cool air evenly, keeping ingredients fresh and safe, all day, every day. A built-in ozone disinfection module keeps the internal chamber clean between cycles without manual cleaning, so the cold chain is protected from load to sale.

      The 21.5 inch HD touchscreen handles menu selection, payment, and advertising from one panel, with operator promotional content running during idle periods as a second revenue stream. Payment covers bill, coin, and card as standard, with optional mobile QR and contactless tap to pay, all MDB compatible. Sales and stock data report to the VMFS Cloud dashboard for operators managing multiple sites.

      • Plug into power
        One standard outlet. No special wiring, no plumbing. Refrigeration, microwave, and touchscreen run from a single connection.
      • Connect payment account
        Cash, cards, and mobile wallets. MDB compatible. All payment methods live within minutes of connecting your account.
      • Load 24 boxed meals
        Box meals, hamburgers, sandwiches, mexican food, and noodles. Set storage temperature for your food type. Conveyor trays adjust for different box sizes.
      • Customer pays, meal heats, done
        Customer selects on the 21.5 inch touchscreen, pays, the microwave heats the item in about 60 seconds, and it dispenses. No staff, no wait longer than a minute.
      Why operators choose it

      What sets it apart

      Compact footprint

      Designed for break rooms, corridors, and staff rooms that full-size units cannot fit. One outlet, one small footprint.

      60 second microwave heating

      Meals stored cold until purchase, then heated to serving temperature in about 60 seconds. A fresh heat cycle every order.

      24 meal capacity

      Right sized for tight-space demand. A break room of 30 to 50 staff empties and restocks once per day.

      21.5 inch HD touchscreen

      Selection, payment, and advertising on one panel. Idle screen promos add a second revenue stream at no extra hardware cost.

      Menu configuration and product range

      What to stock in your mini food vending machine

      24 conveyor slots, microwave heating after every purchase. Box meals, hamburgers, sandwiches, mexican food, and noodles. The right product is individually portioned, sealed, heat-safe, and sized to fit the slot.

      Box meals and prepared meals

      The primary configuration. Individually portioned boxed lunches, prepared entrees, and sealed meal kits heat evenly in the integrated microwave and arrive at serving temperature in about 60 seconds. Stock rotating daily menus for office and school placements.

      Box meals60 second heatDaily rotation

      Hamburgers and hot sandwiches

      Packaged hamburgers, hot sandwiches, and handheld meal formats in sealed heat-safe packaging. Multiple SKUs fit alongside each other in the 24 slot conveyor. The 60 second heat cycle handles all standard packaged formats.

      HamburgersHot sandwichesHandheld

      Mexican food

      Burritos, wraps, and packaged mexican entrees in sealed microwave-safe packaging. High demand items that sell consistently across office, school, and factory placements with even microwave delivery.

      BurritosWrapsSealed

      Noodles and hot bowls

      Packaged noodle bowls and hot bowl formats that heat from cold storage in the microwave. A staple option for factory shifts and student placements that want a hot meal in under a minute.

      NoodlesHot bowlsFactory and campus

      Baked goods and warm items

      Croissants, pastries, rolls, and sealed bakery items served warm from the microwave. Hotel lobbies, transit waiting areas, and offices generate consistent morning demand for warm baked goods without a staffed counter.

      Baked goodsPastriesWarm

      Operator defined rotating menu

      Every slot is operator defined. Rotate by day. Swap a slow SKU based on VMFS Cloud sales data. Each of your mini food vending machines across different sites carries a different menu matched to what that location buys.

      Operator definedCloud informedPer site config
      Hot meals where nothing fit before

      Cold until you order, hot in 60 seconds.

      A compact unit that refrigerates 24 boxed meals from 39F to 77F, then heats to order in about 60 seconds. Built-in microwave, ozone disinfection, and a 21.5 inch touchscreen, all from one outlet and a small footprint.

      See the menu range
      Cold until you order. Hot in 60 seconds.

      Every location that said no to a full-size unit is a yes for the mini food vending machine. One outlet, a small footprint, and 20 or more people who need hot meals.

      Find the right machine for your capacity and menu

      Compare mini and full-size food vending machines at VMFS

      This mini hot food vending machine is built for 24 meal tight-space deployments. If your location needs higher capacity, a larger display, or cold-only fresh food service, the machines below are the step up.

      Mini hot food, compact

      Mini Hot Food Vending Machine

      The unit on this page. 24 boxed meals, 60 second microwave, 21.5 inch HD, refrigerated 39 to 77F, ozone disinfection, compact footprint.

      • Compact footprint
      • 60 second microwave
      • 24 meal capacity
      • Ozone disinfection
      You are already here
      Full capacity hot food

      Hot Foods Vending Machine

      54 adjustable trays, up to 270 items, commercial microwave ovens, 21.5 inch HD, VMFS Cloud.

      • Commercial microwave ovens
      • Up to 270 items
      • 54 adjustable trays
      • VMFS Cloud included
      View the Hot Foods unit
      Fresh food, elevator delivery

      Food Elevator Vending Machine

      270 to 600 items, elevator delivery, adjustable slots, refrigerated 39 to 77F.

      • Elevator delivery, no drops
      • 270 to 600 items
      • 54 adjustable slots
      • Refrigerated 39 to 77F
      View the Food Elevator unit
      Lunchbox format, big display

      Lunch Box Vending Machine

      Higher capacity boxed meal format with a 45 second microwave, 32 inch HD display, and elevator delivery.

      • 45 second microwave heat
      • 32 inch HD display
      • Higher capacity boxed meals
      • Elevator delivery
      View the Lunch Box unit
      Browse all food vending machines Take the machine finder quiz
      Tight-space high-demand locations

      Where to place your mini food vending machine

      This mini food vending machine earns at locations with consistent daily meal demand and limited floor space. Every location here shares one thing: people want hot food, there is nowhere nearby to get it, and a full-size unit will not fit. Office break rooms of 25 to 75 people are the strongest consistent placement. Factory floors and warehouses generate the highest per machine revenue because workers stay on site across shifts. Schools, hospital staff rooms, hotels, and transit areas all add steady demand. VPlaced identifies buildings with the right access terms and traffic density before you commit, and VAdviced handles the food service permit and vendor documentation in every state.

      • Office break rooms and corporate floors

        25 to 75 staff, daily meal demand, fits rooms full-size units cannot

        Office ready

      • Factories and warehouses

        Multi shift demand, no cafeteria, workers stay on site for every meal

        24 hour fit

      • Schools and university campuses

        Between class meal demand, compact fits hallways and common areas

        Campus ready

      • Hospital staff rooms and corridors

        Night shift meal access without leaving the floor, fits tight corridors

        Healthcare fit

      • Hotels and hospitality venues

        Floor placement for warm meals and baked goods without a staffed counter

        Hospitality

      • Transit hubs and waiting areas

        Compact fits platform waiting areas, meal demand from commuters

        Transit fit
      Operators who run this machine

      Who buys the mini hot food vending machine

      From a first machine in one office to a fleet across many tight-space sites to an institutional facility deployment, this is the unit operators choose when there is real meal demand but no room for a full-size machine.

      First-time operators
      A first machine, one location

      Test hot food vending without a full-size unit

      Capacity24 meals
      Heat60 seconds
      FootprintCompact
      PowerOne outlet

      The 24 meal capacity keeps the first product investment manageable, and the compact footprint opens more placement options than any full-size unit. The 60 second heat cycle keeps customers satisfied and reduces walkaways. One standard outlet, no contractor, operational on day one.

      VPlaced evaluates the first site before any product is bought; VAdviced structures the permit
      Multi-location operators
      A route across many tight sites

      Hot meals in every location a full-size unit cannot reach

      FleetOne dashboard
      MenusPer site
      ScreenAd revenue
      PricingFleet

      Ten offices, ten mini units, ten revenue streams. VMFS Cloud manages every machine from one dashboard with per location menus matched to what each site buys. On screen advertising adds a second revenue line at every location, and fleet pricing applies for multi unit deployments.

      VMarketed builds the placement pipeline for operators scaling a mini food vending route
      Facility and institutional
      Buildings with no 24 hour cafeteria

      Hot meals on every floor without renovation

      Storage39 to 77F
      HygieneOzone
      Build outNone
      Access24 hour

      Facility managers solve the meal gap in buildings where a cafeteria does not run around the clock. One outlet, one mini unit, hot meals on every floor that needs them. Refrigerated 39 to 77F storage meets food safety holding standards and ozone disinfection maintains hygiene between restocks without manual cleaning.

      VAdviced handles food service permit documentation for the facility type and state
      Run your ROI numbers
      We back every machine we sell

      What is covered after you buy

      1 year warranty, extendable

      1 year coverage from day one including microwave and refrigeration, with extended protection available at checkout. US warehouse parts inventory. See warranty terms.

      Parts ready, downtime stopped

      Replacement parts stocked and ready to ship, with most fixes handled in under an hour by video call and on site tech dispatch if needed. See vending machine parts.

      Operator training included

      Setup, launch, restocking, and daily operation guidance with video walkthroughs, manuals, and US based experts. Submit and track tickets through the support portal.

      US based support

      Call (305) 395-3997 or email info@vmfsusa.com. Direct contact, not a ticket queue, with a reply within 24 hours on business days. Financing at checkout.

      Contact VMFS support
      Common questions

      Mini hot food vending machine FAQ

      Didn't find your answer? See the VMFS FAQ page, or the team can walk through compliance, configuration, and delivery for your specific venue.

      Talk to VMFS

      This is the compact 24-meal unit in the VMFS food vending lineup, designed specifically for tight-space locations like office break rooms, factory corridors, school hallways, and hospital staff rooms where a full-size machine will not fit. For high-volume locations that need 270-item capacity with commercial-grade microwave ovens, see the Hot Foods Vending Machine.

      Up to 24 boxed meals. The tray layout adjusts for different meal box dimensions. 24 slots covers one restock per day at a break room with 20 to 40 daily transactions, which is exactly the demand profile this mini food vending machine is designed for.

      Meals are refrigerated from 39°F until a customer selects and pays for an order. After payment the integrated microwave activates and heats the item in approximately 60 seconds. Heating only happens after purchase. No pre-warming. No food sitting hot. No waste from unsold pre-warmed inventory.

      39°F to 149°F. Cold storage holds meals safely until purchase. The integrated microwave heats each item to serving temperature after the order is placed. Built-in ozone sterilization keeps the internal chamber clean between cycles without manual cleaning.

      Boxed lunches, prepared meals, pizza slices, burgers, hot sandwiches, fries, baked goods, and any individually portioned food item in sealed heat-safe packaging that fits the 24-slot tray configuration. The operator defines and rotates the full menu without a service call.

      No. This mini hot food vending machine ships pre-configured. Refrigeration, microwave, touchscreen, and payment systems are aligned at the factory before shipping. One standard outlet on day one. No special wiring. No plumbing. No installation crew.

      Bill, coin, and credit card as standard. Optional upgrades add mobile QR payments and contactless tap-to-pay. MDB compatible. All payment methods go live within minutes of connecting your account.

      Yes. The 21.5-inch HD touchscreen on this small food vending machine displays operator-defined advertising and promotional content during idle periods, creating an additional revenue stream beyond product sales.

      For full-capacity hot food with commercial microwave ovens and 270-item capacity, see the Hot Foods Vending Machine. For fresh cold food with elevator delivery up to 600 items, see the Food Elevator Vending Machine. For lunchbox format with a 32-inch display, see the Lunch Box Vending Machine. For cup noodles, see the Ramen Noodle Vending Machine. Browse all at food vending machines.

      Yes. Flexible financing options are available at checkout. Multi-unit pricing applies automatically for fleet deployments.

      1-year standard warranty covering all core parts including microwave and refrigeration. Extended options available at checkout.

      A regular snack machine dispenses cold packaged goods without heating. This mini food vending machine refrigerates meals until purchase and then heats them in approximately 60 seconds before dispensing. Same compact footprint. Completely different product. Hot meals instead of chips.

      Build a custom system
      Build a custom food vending machine system

      If your placement needs a different capacity, menu, payment hardware, or footprint than the mini unit, VMFS builds custom food vending systems to order. Tell us your daily volume, product mix, payment hardware, and footprint constraints. Lead time depends on configuration.

      Build your system Talk to a specialist
      Ready to place your mini food vending machine

      Buy the mini hot food vending machine

      24 boxed meals. 60 second microwave heating. Compact footprint for tight spaces. 21.5 inch HD touchscreen. Refrigerated 39F to 77F. Ozone disinfection. One standard outlet. 1 year warranty. Offices, factories, school corridors, hospital staff rooms.

      Get a quote

      Configuration handled before shipping. Financing with monthly options available. Multi unit pricing applies for fleet deployments.

      Request a quote

      Browse food vending machines

      See the full food vending machines lineup: mini, full capacity hot food, fresh elevator, and lunchbox formats.

      Browse lineup

      Run your ROI numbers

      Calculate payback at your location daily volume and meal pricing before you commit to a format.

      Calculate ROI
      VMFS USA · Mini Hot Food Vending Machine · 24 Meals · 60 Second Microwave · 21.5 Inch HD Touchscreen
      Refrigerated 39 to 77F · Ozone Disinfection · Bill, Coin, Card, Mobile · 1 Year Warranty
      Browse food vending machines · ROI calculator · Contact

      Collections: Maquinas Expendedoras Especiales, Maquinas Expendedoras Saludables, Máquinas expendedoras en venta, Venta de máquinas expendedoras de alimentos
