Everything You Need

Explore the Slim Combo

22.8 inches wide. Tap any card for specs, fit checks, running costs, warranty, and support. The machine that goes where standard widths cannot.

Slim Combo Vending Machine, 22.8 inches wide, by VMFS USA

Narrower than a doorway

A standard interior doorway is 32 to 36 inches. This machine passes through with clearance and rides a standard elevator.

See full specs

Cashless checkout

Browsing and payment in one interface. Cards and mobile wallets, no coin mechanism to jam.

Vends at any fill level

Springs hold product forward continuously, so the last item vends as reliably as the first. 180 to 300 items depending on product size.

Active refrigeration

All 36 slots cooled at once, and the temperature holds through the door open restock period.

Tech Specs

Slim Combo Technical Specs

22.8 inches wide, 36 spring-loaded slots, cashless. SKU slim-snacks.

Capacity and Configuration

36 adjustable spring-loaded slots
Approximately 180 to 300 items depending on product size
Operator set snack to drink ratio, adjustable between service visits
Packaged snacks, canned and bottled beverages, and specialty small formats

Delivery and Temperature

Spring-loaded slots hold product forward at any fill level
Drop-down delivery bin
Refrigeration adjustable from 39 F to 77 F
All 36 slots cooled at once, holds through the restock period

Interface, Payments and Management

5 inch HD LCD screen for browsing and checkout
Cashless only: cards and mobile wallets
No coin mechanism and no bill acceptor as standard
VMFS Cloud available for sales tracking, refill alerts, and remote pricing

Dimensions and Build

76.4 x 22.8 x 31.1 inches, approximately 330 lbs
Passes through a standard 32 inch doorway with clearance
Keyed cabinet lock with security keys included
110 to 120V AC 60Hz, standard outlet, no special wiring

Will It Fit?

Measure Before You Order

Width is the reason this machine wins placements. Confirm the route once and delivery day is simple.

The machine is 22.8 inches wide, 76.4 inches tall, 31.1 inches deep, and about 330 lbs. Check the narrowest point between the truck and the final spot.

Doorways and Corridors

Standard interior doors run 32 to 36 inches
This unit clears both with room to spare
Measure the tightest turn, not just the door

Elevators

Most commercial cabs are 48 to 60 inches wide
Rated 2,000 lbs and up, well above 330 lbs
No freight elevator needed for most sites

Final Placement

Allow at least 24 inches of floor width
Leave rear clearance for airflow
Standard 110V outlet within reach

Two People, No Pallet Jack

330 lbs moves with two people
No liftgate required at most locations
White glove delivery places it on the spot

Brochure

Slim Combo Brochure

Full spec sheet, dimensions, and configuration options.

The brochure covers dimensions, slot configuration, refrigeration, payment hardware, and power requirements for the Slim Combo. Need the operator manual or a wiring diagram for your site, just ask the team.

Monthly Costs

What This Machine Costs Monthly

Recurring costs only. Hardware upgrades are one time at checkout.

The machine is cashless, so a card reader is the one piece you should budget for. Everything else is optional.

Card Reader (Required)

Reader hardware is $450 at checkout
Nayax or Cantaloupe plans run about $8 to $10 per month
Their processing fee applies per transaction

Connectivity

4G module is $95 at checkout, SIM not included
Most card readers include their own SIM
No store WiFi needed at the location

VMFS Cloud (Optional)

The machine runs fine without it
Add it when you want remote pricing and slot level data
Refill alerts before a slot runs dry

Cash Handling

Cashless only as standard
A coin and bill acceptor is available at $450 if a site requires cash
Fewer moving parts means fewer service calls

ROI Calculator

Estimate Your Monthly Profit

Move the sliders. Every cost and fee is already included.

Step 1 · Your machines

Tap a preset for a quick start, then fine-tune below.

1
130
$5,100

Machine plus freight to your door. The Smart Combo lands at about $5,100.

$3,000$30,000
Step 2 · Your sales
210

Roughly how many people pass each machine per day.

01,000
6%

Of the people who pass by, how many buy something. Workplaces convert higher than public spots.

0%15%
PublicResidentialWorkplace
$3.00
$0$30
VendingMicro-marketRetail
60%

Your markup after paying for the products you sell.

0%90%
Snack & drinkFresh foodSpecialty
Advanced settings, costs & fees Already included in your estimate. Open only to adjust.
30
2031
2
15
5%

Applied to product cost. Covers supplier handling, inbound shipping, and restocking.

3%10%
VMFS Paid to VMFS, AI system & platform

These fees apply to AI camera models only. The Smart Combo runs without them, so they are off by default.

AI Recognition fee $0.07 per completed sale. Turns on automatically with AI Cloud. $0 Auto
3rd party Paid to outside providers, optional

Monthly fixed fees scale with machine count. Per-sale fees apply across all sales. Toggle optional items to see the impact on your profit.

Your estimate
Estimated monthly profit
$938
After all costs and fees, across 1 machine.
Monthly revenue
$2,268
378 sales
Payback
6 mo
$5,100 cost
Per machine
$938
profit / month
Revenue$2,268
Product & supplier costs−$953
Card fees & commission−$352
Platform & service fees−$25
Net monthly profit$938
Show full breakdown
Product cost−$907
Processing & supplier fee−$45
Card processing fees−$125
Location commission−$227
VMFS AI Cloud$0
AI Recognition$0
Weight sensor$0
SIM card−$15
Card reader−$10

Estimates only. Your results depend on product mix, location terms, and fees. Open advanced settings to model your exact setup.

Cloud System

Run It From Your Phone

Optional on this model, and worth more than usual on a machine tucked into a hard to reach spot.

Why It Matters On A Slim Machine

Slim placements are often upstairs, down a corridor, or behind a front desk.
Cloud data tells you what actually needs a visit
Fewer wasted trips across town for a half full machine
Sales by slot show which products earn the space

What You See

Every transaction logs in real time.
Refill alerts push before a slot empties
Temperature and fault status at a glance
Pricing updates remotely, no site visit

Start With The Card Reader

Nayax and Cantaloupe both offer live data plans.
Covers sales and basic telemetry for most operators
Add VMFS Cloud when you want slot level control
Sold separately and easy to activate anytime

Shipping and Delivery

From Our Warehouse To Your Floor

Freight delivery with appointment scheduling and white glove options.

We confirm your production and shipping window during checkout and keep you updated if anything changes.

Lead Times

Lead time is 7 to 21 days depending on availability
Custom wrap adds about 1 week
Lead times can change with selections and stock

Where We Ship

All 50 states including Hawaii and Alaska, plus Puerto Rico
International shipping to most of the world
Not available for North Korea and Russia

White Glove Delivery

Machine brought inside to your exact spot
Unpacking and packaging disposal included
At 330 lbs and 22.8 inches wide, no pallet jack needed at most sites

At Delivery

Inspect the crate before signing
If damage suggests the machine is affected, refuse delivery and send it back
Photograph the unit before it goes back, and note smaller issues on the receipt

Warranty

Covered From Day One

Built for a long service life with protection that keeps you earning.

Standard Coverage

1 year parts warranty included at no cost
Covers manufacturing defects and normal use
Parts and shipping covered in the continental US
International: parts free of charge, you cover shipping

Extended Warranty

2 years extended for $250 at checkout
Priority claims and faster part fulfillment
US warehouse inventory so replacements arrive in days

What Is Covered

Refrigeration system and control boards
Spring-loaded slot motors and sensors
LCD screen, payment module, and cloud setup support

Expert Support

Remote diagnostics from our support team
Firmware and cloud assistance under warranty
Call (305) 395-3997 or email info@vmfsusa.com

Lifetime Support

We Back Every Machine We Sell

Support is free for life. Day one setup or ten years in, it costs nothing.

Free lifetime support comes with every machine. Setup on day one or a question years later, you never pay for help with VMFS USA.

Warranty Coverage

1 year standard warranty included
Extended protection available at checkout
All core parts covered from day one

View coverage

Parts Ready, Downtime Stopped

Replacement parts stocked in the US
Hot swappable parts mean most fixes take minutes
Guided repairs by video call, tech dispatch if needed

See vending machine parts

Your Support Hub

Submit tickets and track every open request
Full service history and order tracking in one place
Follow up anytime, nothing gets lost

Open portal info

We Teach You Everything

Setup, launch, and operator guidance from day one
Calls, video walkthroughs, and manuals
Nationwide technicians and US based experts

Get in touch

Operator Stories

Where This Machine Got Placed

4.8 Four operator placements reported to VMFS
Director of Facilities Director of Facilities 40 person law firm, Chicago, IL

We had been trying to get a machine into that hallway for three years. Everything was too wide. The moment I saw 22.8 inches in the spec sheet, I called immediately. Setup took 45 minutes.

Hotel Manager Hotel Manager 28 room boutique hotel, San Francisco, CA

The previous operator gave up because the machine would not fit through the service door. This one did. The revenue is secondary to the guest satisfaction improvement.

Property Manager Property Manager 60 unit residential building, Austin, TX

I measured six different machines over four months. All of them failed either the elevator width or the corridor width. This one passed both. It was the only option that actually worked for our building.

Studio Owner Studio Owner Boutique fitness studio, Miami, FL

My members asked for this. The 24 inch gap at the front desk seemed impossible to fill. When I found a machine that fit with two inches to spare, I ordered it the same day.

Case Studies

Most machines make $900/mo. VMFS systems make $4,500.

Watch a real operator pull 30 days of sales from a single VMFS system.

Video preview

No staged demo, no script. Just the raw payout, the product mix that moved, and the placement that made it work.

Peak Fuel Vending runs a single operator route built on VMFS systems. His own numbers caught him off guard, and the full breakdown is in the video above.

30 Day Satisfaction Guarantee. 1 Year Warranty. White Glove Setup. Lifetime Support.

Compare Widths

Slim Or Standard Width

If the space allows a wider machine, one of these holds more. If it does not, this is the machine.

Every comparison below leads with width, because width is what decides the placement.

Slim Combo, 22.8 in

36 spring-loaded slots, 180 to 300 items
330 lbs, two person placement
Cashless, 5 inch LCD screen

Combo Elevator, 31.5 in

Elevator delivery with FIFO rotation
300 to 800 items
View machine

Seaga ENV5C, 39 in

American built, 371 item capacity
Standard coil delivery, in stock
View machine

Smart Elevator, 48.4 in

32 inch touchscreen, RFID and QR payment
Outdoor ready cabinet
View machine

Customize It

Build Your Custom Machine

Wrap it, configure the slots, and pick your payment hardware.

Choose your product mix and slot layout
Select payment and connectivity options
Add branding and a custom wrap
Get a price in minutes

Every build is mapped with you during quoting, so the machine that ships matches what you sell and where it goes.

Build Your Custom Machine

FAQ

Frequently Asked Questions

The questions operators ask most before buying the slim.

How wide is the Slim Combo Vending Machine?

It is 22.8 inches wide. A standard US interior doorway is 32 to 36 inches, so the machine passes through with clearance on both sides. Full dimensions are 76.4 inches tall by 22.8 inches wide by 31.1 inches deep, at approximately 330 lbs.

How is this different from a standard width machine?

Most full size combo machines run 31 to 48 inches wide. This one is 22.8 inches, the narrowest floor standing combo in the VMFS catalog. It vends the same product types the same way. The difference is purely dimensional, and that dimension is why it reaches locations other machines cannot.

How much product does it hold?

36 adjustable spring-loaded slots holding roughly 180 to 300 items depending on product size. The snack to drink ratio is operator set and can be changed between service visits with no hardware swap.

What are spring-loaded slots and why do they matter?

Standard coils rotate to push product forward, and a partially empty coil can strand product at the back. Spring-loaded slots push everything forward continuously, so the last item vends as reliably as the first. On a machine restocked weekly or less, that reliability matters.

Does it accept cash and coins?

Not as standard. The machine is cashless: cards and mobile wallets through the payment terminal. A coin and bill acceptor is available as an upgrade at checkout if a site requires cash.

Is it refrigerated?

Yes. Active refrigeration adjustable from 39 F to 77 F across all 36 slots at once, and it holds temperature through the door open restock period.

Can I install it on an upper floor without a freight elevator?

In most cases yes. At 330 lbs and 22.8 inches wide it fits a standard commercial elevator, and two people can move it into position without a pallet jack. Confirm your elevator width and weight rating with building management before scheduling delivery.

How do I monitor it remotely?

The machine connects to VMFS Cloud for sales by slot, temperature, and refill status in real time. Refill alerts push to your phone and pricing updates remotely, which cuts unnecessary trips to hard to reach placements.

What is the lead time?

7 to 21 days depending on availability. Custom wrap adds about a week. We confirm your window at checkout.

Does it come with a warranty?

Yes, a 1 year parts warranty is included, with a 2 year extension available for $250 at checkout. Lifetime support is free on every machine.

Where does this machine fit best?

Any site where the available space is under 30 inches wide: small break rooms, hotel floor corridors, salon and studio front desks, residential lobbies with standard elevator access, and clinic side rooms. Moderate daily volume with a captive audience supports premium per item pricing.

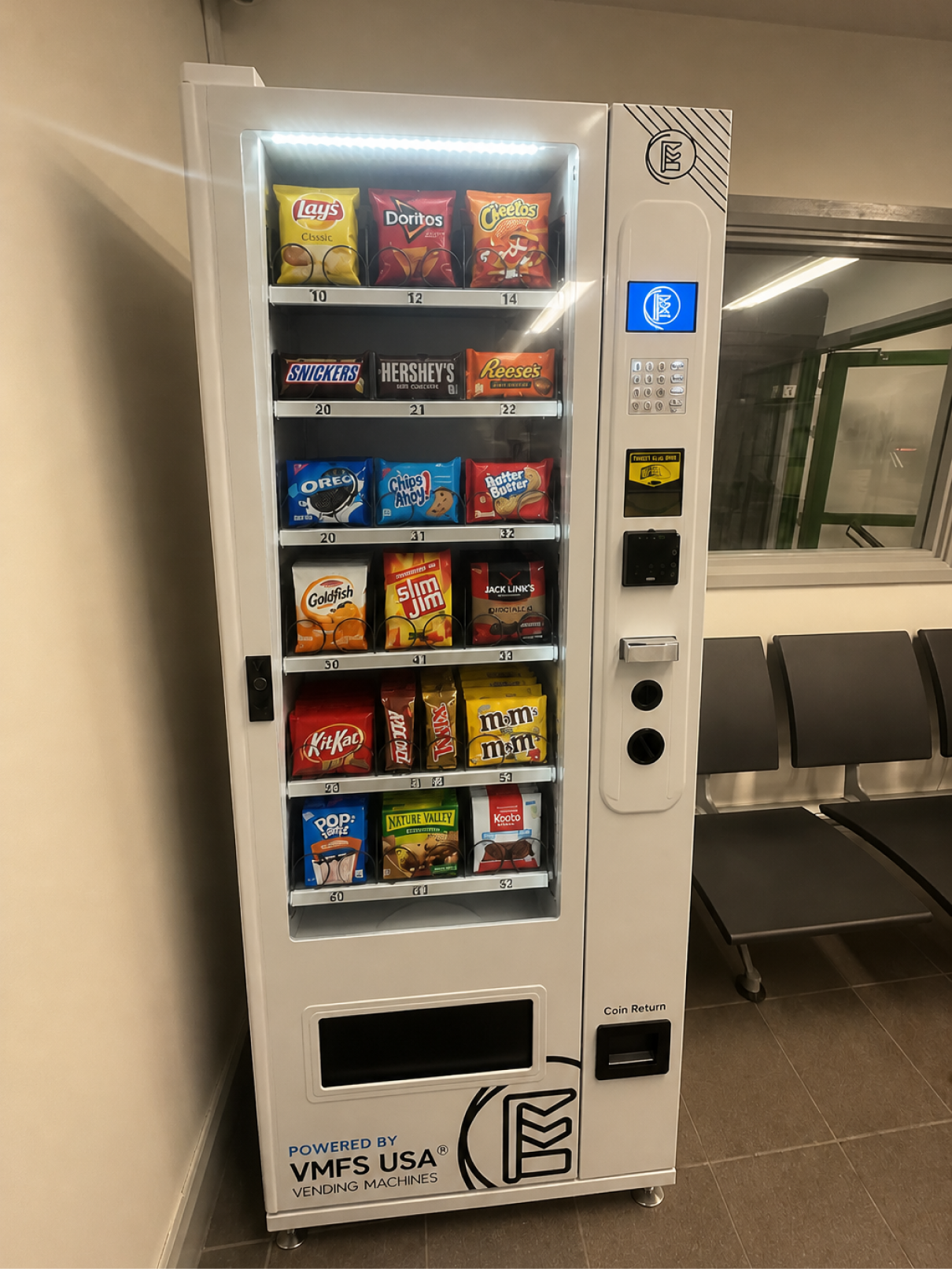

Slim combo vending machine at 22.8 inches wide by VMFS USA

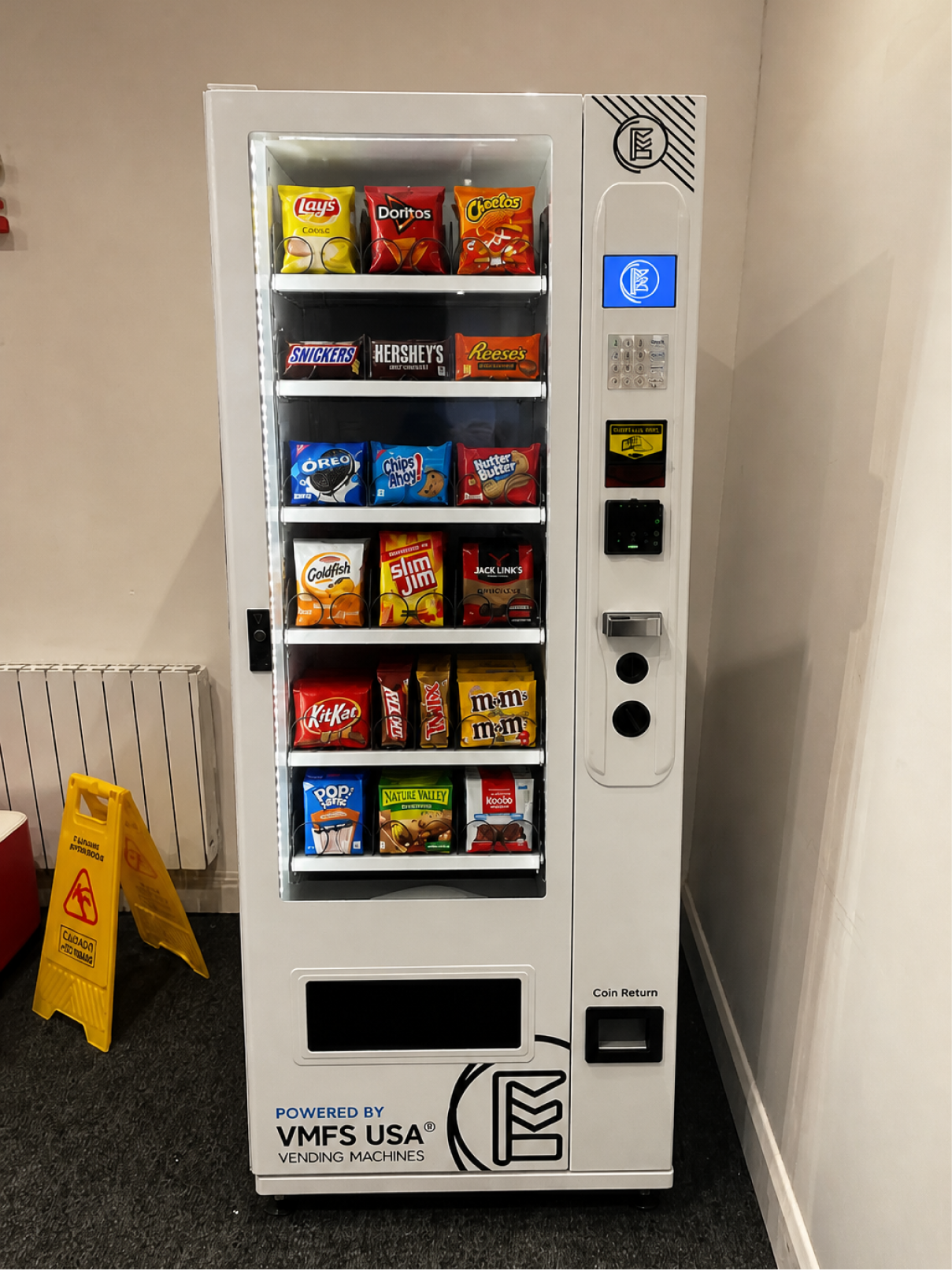

Slim combo vending machine, 22.8 inches wide

Slim Combo Vending Machine, the unit that fits where standard machines do not

The VMFS slim combo vending machine is 22.8 inches wide. That is less than two feet. A standard interior doorway is 32 to 36 inches across. This machine passes through it with clearance. Every other full-size combo vending machine in the VMFS lineup is wider: 31.5 inches at minimum, up to 48 inches at maximum. If the space has a narrow corridor, a tight hallway, a small break room, or a spot where a standard-width machine simply does not go, this one does. At 330 lbs and 76.4 inches tall, this is a small vending machine in profile, not in capability. Thirty-six spring-loaded slots hold 180 to 300 items depending on product size. Active refrigeration maintains 39 to 77 degrees F. An intuitive number pad and LCD screen handles selection and cashless payment. VMFS Cloud tracks every sale and sends refill alerts to your phone.

22.8 inWidth. Narrower than a standard doorway
330 lbsWeight. Two people, no pallet, no freight elevator
36Spring-loaded slots, 180 to 300 items
Spring-Loaded Slot Delivery 22.8 Inch Slim Profile 39°F to 77°F Active Refrigeration 5-Inch HD LCD screen Cashless + VMFS Cloud Spring-Loaded Slot Delivery 22.8 Inch Slim Profile 39°F to 77°F Active Refrigeration 5-Inch HD LCD screen Cashless + VMFS Cloud
Full specifications

Slim Combo Vending Machine specs

Total capacityApproximately 180 to 300 items (depending on product size)
Slots36 adjustable spring-loaded slots
Slot mechanismSpring-loaded, holds product forward at any fill level
ConfigurationOperator-set snack-to-drink ratio, adjustable between visits
Product supportPackaged snacks, canned and bottled beverages, specialty items
Tray and deliveryDrop-down
Display and interface5-inch HD LCD Screen, browsing and payment in one interface
PaymentsCashless only, cards and mobile wallets
Remote managementSales, refill alerts, and pricing via VMFS Cloud
Temperature control39 to 77 degrees F refrigerated storage
RefrigerationAll 36 slots simultaneously
Power supply110-120V AC, 60Hz
Refrigeration coverageAll 36 slots simultaneously
Temperature stabilityHolds temperature through the door-open restock period
Width note22.8 in. Passes through a standard 32-inch doorway with clearance.
SecurityKeyed cabinet lock, security keys included
Dimensions (H x W x D)76.4 x 22.8 x 31.1 in
WeightApproximately 330 lbs

Delivery route and power notesAt 22.8 inches wide and 330 lbs, this machine passes through a standard interior doorway (32 to 36 inches) with clearance and moves with two people. Confirm your narrowest access point on the route from delivery to final placement before ordering. No liftgate or freight elevator required for most sites.

In the box

Slim combo machine unit
Operator and configuration manual
Security keys
Power cable
The full operator ecosystem

Buying the machine is one decision

The slim machine handles the vending. The V Systems network handles placement, contracts, and fleet monitoring, so the narrow-space opportunity is captured and operated correctly from day one.

VMFS Cloud

Remote monitoring on a small machine

Every sale and slot draw logs to the VMFS Cloud dashboard in real time. Refill alerts push before any slot empties, and pricing updates remotely.

VPlaced

Find the narrow-space locations

VPlaced identifies the corridor placements, compact break rooms, and narrow-hallway sites a standard-width machine cannot access.

VAdviced

Contracts and permits

VAdviced structures placement agreements, revenue share, and operator permits before go-live.

VMarketed

Build the route

VMarketed develops the brand and location pipeline for operators scaling from one slim machine to a full route of compact placements.

The machine that fits the space that rejected every other one

Small vending machine, the width that changes everything

The most common reason an operator loses a placement is not price or product mix. It is dimensions. The site manager measures the spot, measures the hallway to it, and the machine does not fit. This one does.

Spring-loaded slot delivery on the slim combo vending machine Vends at any fill level

Spring-loaded slots, not a half-empty coil

Standard coils rotate to push product forward. When a coil is partially empty, the remaining product sits at the back and may not dispense on the next attempt. Spring-loaded slots push every remaining item forward continuously, so the last item vends exactly as reliably as the first. At small locations restocked weekly or less, that reliability is the difference between a sale and a complaint.

All 36 slots are adjustable, and the snack-to-drink ratio is operator-set per site with no hardware change between service visits. For every width and capacity option, browse combo vending machines.

Coil strands product at the back Spring holds product at the front

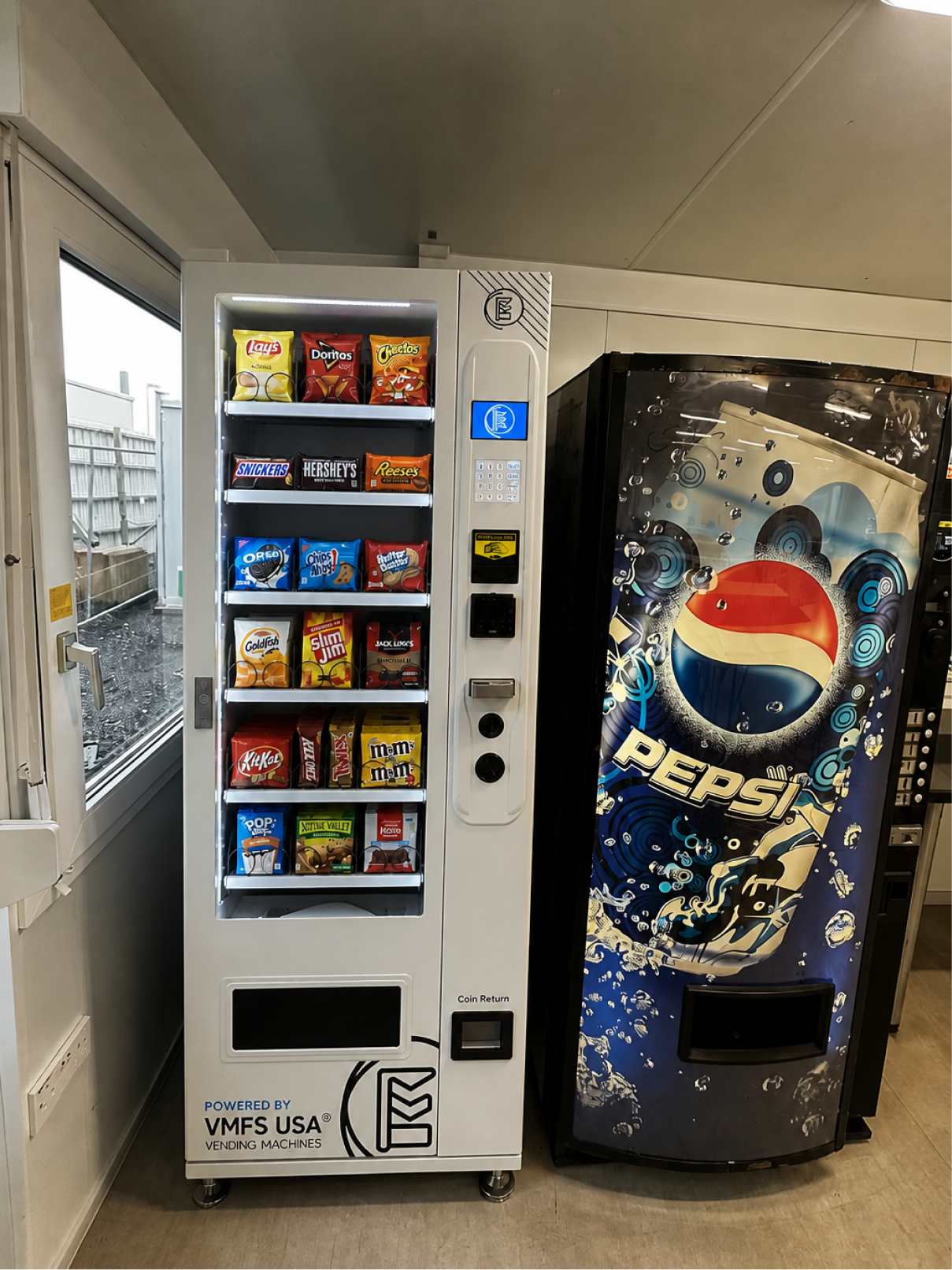

22.8 inch slim combo profile through a standard doorway Fits a 32-inch doorway

Through the doorway and into position

At 22.8 inches wide, 76.4 inches tall, and approximately 330 lbs, this machine passes through a standard interior doorway with clearance, rides a standard elevator, and is positioned by two people without a pallet jack or liftgate. Active refrigeration with thermal insulation holds a digitally adjustable 39°F to 77°F across all 36 slots, and holds it through the door-open restock period.

  • Delivery without freight equipment
    Through a standard doorway and into position with two people. No pallet jack, no freight elevator for most sites.
  • Load 36 spring-loaded slots
    Slots configured for your mix, ready to vend from first plug-in. Snacks, packaged goods, and refrigerated beverages.
  • Customer selects on the 10-inch screen
    HD LCD screen handles browsing and cashless payment in one interface. Cards and mobile wallets.
  • Cloud alerts you before it runs dry
    Refill alerts push to your phone, pricing updates remotely, sales by slot without driving to the machine.
Why operators choose it

Built around fit, not footprint

Vends at any fill level

Spring-loaded slots hold product forward continuously. The last item vends as reliably as the first.

36 adjustable slots

Operator-set snack-to-drink ratio, changed between service visits with no hardware swap.

39 to 77F active refrigeration

Thermal insulation with active cooling across all 36 slots simultaneously.

1-year warranty, US support

US parts inventory, direct phone support, and financing at checkout.

What fits inside this machine

Small vending machine, full product range

180 to 300 items across 36 spring-loaded slots. Every slot is adjustable and operator-configured, and the refrigeration covers all slots simultaneously, so snacks, drinks, and packaged goods share one temperature-controlled cabinet.

Refrigerated beverages at 39F

Cans, small-format bottles, juice, energy drinks, and cold brew chill at 39F, and the temperature holds through the door-open restock period.

39FCansBottles

Snacks, chips, and candy

Spring-loaded slots hold bags forward at any fill level. What is in the slot vends.

ChipsBarsCandy

Specialty small-format items

Supplements, cosmetics, accessories, and travel-size items. Anything that fits the slot dimensions.

SupplementsAccessories

Mixed snack and drink mix

The operator sets the slot ratio per site and adjusts it between visits with no hardware change.

Operator-setAdjustable

High-margin small formats

Energy shots, premium water, and specialty bars price at $3 to $6 at captive placements. VMFS Cloud tracks which slots sell through fastest.

Premium pricingCloud-tracked

Cashless-only experience

Cards and mobile wallets on the 5-inch LCD screen. No coin mechanism to jam.

Cashless5-inch LCD screen
When the space decides the machine
Narrow placements

When the space decides the machine

A 24-inch gap rules out every standard-width combo machine. It does not rule out this one. The placement goes to the machine that fits.

Fits where nothing else does.

22.8 inches wide. Through a standard doorway with clearance, into the alcove, and earning, where every other machine was turned away.

How this machine fits vs alternatives

Small combo vending machine, size comparison

The slim machine is the right choice when the space determines the machine. If the site can fit a wider unit, one of these has more capacity. Every comparison below leads with width so you can match the machine to the placement.

22.8 in wide, slim tier

Slim Combo Vending Machine

The unit on this page. 22.8 inches wide, 330 lbs, 36 spring-loaded slots, 180 to 300 items, 5-inch HD LCD screen, cashless, active refrigeration.

  • 22.8 in wide
  • 330 lbs, two-person
  • 36 spring-loaded slots
  • Cashless + cloud
You are already here
31.5 in wide, elevator

Combo Elevator Vending Machine

Elevator delivery, FIFO rotation, 300 to 800 items. For sites with clearance for 31.5 inches.

  • 31.5 in wide
  • Elevator delivery
  • 300-800 items
  • FIFO + health timer
View machine
39 in wide, US-built

Seaga ENV5C Combo

Standard coil, 371 items, American-built, in stock at $5,783. For sites with full-width clearance.

  • 39 in wide
  • 371-item capacity
  • Made in USA
  • $5,783 in-stock
View machine
48.4 in wide, smart screen

Smart Elevator Vending Machine

32-inch touchscreen, RFID and QR payment, outdoor-ready cabinet. For premium wide placements.

  • 48.4 in wide
  • 32-inch touchscreen
  • RFID + QR + tap
  • Outdoor ready
View machine
48.4 in wide, high volume

Drink Snack Vending Machine RDS

700 items, 54 slots, full payment stack including cash and NFC. For high-traffic full-width sites.

  • 48.4 in wide
  • 700-item capacity
  • 54 slots
  • Cash + NFC
View machine
XL elevator, 9 channels

XL Combo Elevator Vending Machine

Extra-large elevator combo for the highest-traffic placements. 9 channels per tray, 3-point lock.

  • 9 channels per tray
  • Elevator delivery
  • 3-point security lock
  • High volume
View machine
Compact Seaga, coil

Seaga QB2200

Compact QuickBreak. Smaller footprint, lower capacity, coil delivery, American-built.

  • Compact footprint
  • Lower capacity
  • Coil delivery
  • Made in USA
View machine
Smart telemetry, standard width

Seaga Envision IQ Combo

Cloud-connected Seaga combo with telemetry and remote fleet management. Standard width.

  • Smart telemetry
  • Remote management
  • Coil delivery
  • Made in USA
View machine

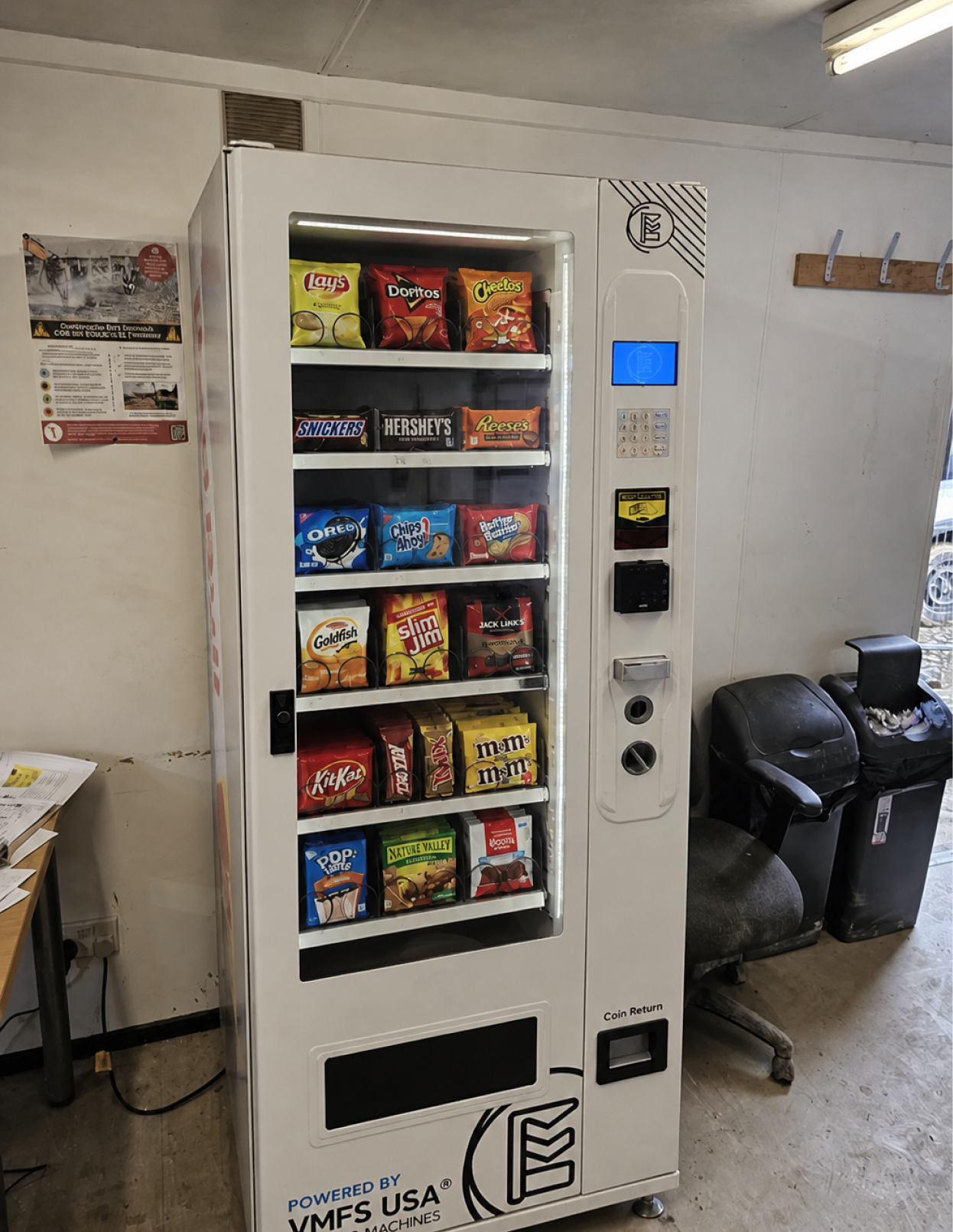

Slim combo vending machine placement in a narrow space
The locations this machine unlocks

Compact vending machine, where slim earns

At 22.8 inches wide, this machine fits a category of sites standard widths cannot reach: narrow hallways, small break rooms, front-desk gaps, and buildings with standard-elevator access only. Many are high-traffic captive placements that support premium per-item pricing. At 330 lbs, two people position it without freight equipment. VPlaced identifies narrow-space locations with genuine demand before the machine ships.

  • Small office break rooms

    Limited floor space, no clearance for a 39-inch machine, consistent daily staff demand

    Top fit
  • Medical clinic side rooms

    Compact staff or patient areas where width is the determining factor

    Clinic ready
  • Retail and salon spaces

    Service areas with exact footprint constraints, premium per-item pricing justified

    Retail adjacent
  • Hotel floor corridors

    Constrained by building layout, narrow access, 24-hour drink and snack demand

    Corridor ready
  • Residential lobbies

    Standard elevator access only, 330 lbs positioned without freight equipment

    Elevator install
  • Boutique fitness studios

    Front desk gaps, member-facing premium vending in a defined footprint

    Premium fit
Real operator results

Slim combo vending machine, where it got placed

Four placements where the machine won because nothing else fit.

Payback ~20 mo
Chicago, IL · Law firm

Slim vending machine for office suite, Chicago

Drinks / mo190 @ $3.25
Snacks / mo120 @ $3.00
Gross / mo$977.50
Net / mo$370.87

"We had been trying to get a machine into that hallway for three years. Everything was too wide. The moment I saw 22.8 inches in the spec sheet, I called immediately. Setup took 45 minutes."

Director of Facilities, 40-person law firm, Chicago, IL. 14th floor, 26-inch alcove placement.
Payback ~17 mo
San Francisco, CA · Boutique hotel

Small vending machine for hotel floor, San Francisco

Drinks / mo140 @ $4.50
Snacks / mo90 @ $4.00
Gross / mo$990
Net / mo$430

"The previous operator gave up because the machine would not fit through the service door. This one did. The revenue is secondary to the guest satisfaction improvement."

Hotel Manager, 28-room boutique hotel, San Francisco, CA. Replaced abandoned project.
Payback ~26 mo
Austin, TX · Residential

Compact vending machine for apartment building, Austin

Volume / mo280 @ $2.50
Gross / mo$700
Op cost$415
Net / mo$285

"I measured six different machines over four months. All of them failed either the elevator width or the corridor width. This one passed both. It was the only option that actually worked for our building."

Property Manager, 60-unit residential building, Austin, TX. 28-inch corridor, 48-inch elevator.
Payback < 10 mo
Miami, FL · Fitness studio

Narrow vending machine for fitness studio, Miami

Volume / mo420 @ $4.00
Gross / mo$1,680
Op cost$890
Net / mo$790

"My members asked for this. The 24-inch gap at the front desk seemed impossible to fill. When I found a machine that fit with two inches to spare, I ordered it the same day. The payback was faster than I expected."

Studio Owner, boutique fitness studio, Miami, FL. 24-inch niche, 35 members per class.
Warranty and Support

What's covered after you buy

1-year warranty

Standard on every unit, parts and labour, US warehouse inventory so replacements arrive in days. Extended options at checkout. Lifetime success-team support.

Nationwide delivery

Curbside or White Glove. At 330 lbs and 22.8 inches wide, two people position it without a pallet jack or freight elevator for most sites.

Built for narrow placements

Confirm the narrowest access point on the route from delivery to final position. Pre-order site measurement consultation is available from the success team.

US-based support

Call (305) 395-3997 or email info@vmfsusa.com. Direct contact, not a ticket queue, with a reply within 24 hours on business days. Financing available at checkout.

Common questions

Slim combo vending machine FAQ

Didn't find your answer? The VMFS team can walk through configuration, financing, and delivery for your specific site.

Talk to VMFS

The slim combo vending machine is 22.8 inches wide. A standard US interior doorway is 32 to 36 inches wide, which means this machine passes through with at least 9 inches of clearance on each side. The full dimensions are 76.4 inches tall by 22.8 inches wide by 31.1 inches deep. At 330 lbs, two people can move it into position through a standard building. Confirm the narrowest access point on the route from your delivery point to the final placement location before ordering.

Most full-size combo vending machines range from 31 to 48 inches wide. The Seaga combo vending machine in the VMFS lineup is 39 inches wide. The smart elevator and drink-snack machines are 48 inches wide. This slim machine is 22.8 inches wide, which is the narrowest floor-standing combo machine in the VMFS catalog. In terms of product type and vending function, it operates identically to a standard-width machine. The difference is purely dimensional, and that dimension is the reason it reaches locations that standard machines cannot.

A mini combo vending machine is a compact floor-standing unit that dispenses both snacks and beverages from one cabinet in a smaller physical footprint than standard combo machines. This unit qualifies as a mini combo vending machine: 22.8 inches wide, 36 spring-loaded slots, 180 to 300 item capacity, active refrigeration, 5-inch LCD screen, and VMFS Cloud connectivity. It is commercial-grade in every specification, not a home or novelty unit. If maximum compactness with a true dual-category (snack and drink) capability is the priority, this is the unit in the VMFS combo vending machines collection engineered for that requirement.

A compact vending machine is a commercial vending unit with a smaller physical footprint than standard full-size models. This machine qualifies on every dimension: 22.8 inches wide (versus 31 to 48 for standard units), 330 lbs (versus 630 to 813 lbs for most full-size options), and 36 spring-loaded slots (versus 50 to 72 for larger units). The trade-off is capacity: 180 to 300 items versus 371 to 800 for larger machines. That trade-off is appropriate for small locations with lower daily volume where a full-size machine would be both physically impossible and functionally oversized.

A narrow vending machine is a floor-standing vending unit with a reduced width designed to fit in spaces that standard machines cannot access. At 22.8 inches wide, this machine is the narrowest full-size combo unit available at VMFS. Buyers who need a narrow vending machine typically have a specific spatial constraint: a hallway width, an alcove dimension, an elevator interior measurement, or a room that simply cannot physically accommodate a standard 33 to 48-inch machine. The narrow format solves a problem that no amount of capacity or features can solve if the machine does not fit through the door.

Standard vending machine coils rotate to push product forward as items sell. When the coil is partially empty, the remaining product sits at the back of the coil and may not dispense reliably during the next sale attempt. Spring-loaded slots use a mechanical spring to push all remaining product forward continuously regardless of fill level. The last item in a spring-loaded slot vends exactly as reliably as the first. For a compact machine that may be restocked weekly or less frequently, reliable dispensing at low fill levels is operationally significant.

No. The slim combo vending machine is cashless only. It accepts cards and mobile wallets through the integrated payment terminal. There is no coin mechanism and no bill acceptor. This is a deliberate design choice: removing the coin and bill hardware keeps the internal cabinet cleaner, eliminates the jam failure mode of compact-space coin mechanisms, and positions the machine as a modern premium product experience. For sites where cash acceptance is a requirement, the Seaga combo vending machine supports both coin and bill acceptor upgrades.

The machine connects to the VMFS Cloud dashboard for remote monitoring of sales by slot, temperature, and refill status. Every transaction logs in real time. Refill alerts push to the operator's phone before any slot empties. Pricing updates remotely without a site visit. For a machine installed at a hard-to-access location, cloud monitoring reduces unnecessary site visits by providing real-time visibility into what actually needs attention.

Any site where the available space is under 30 inches wide. Small office break rooms and kitchen alcoves, hotel floor service corridors, boutique fitness studios and salons with front-desk counter gaps, residential apartment building lobbies accessible only by standard elevator, and medical clinic side rooms. The machine also suits sites where daily volume is moderate (30 to 80 daily transactions) but the captive-audience nature of the location supports premium per-item pricing that compensates for the lower transaction count.

Yes, in most cases. At 330 lbs, the machine fits in a standard commercial elevator (most are rated for 2,000 to 3,500 lbs and are 48 to 60 inches wide). At 22.8 inches wide, it fits in a standard elevator interior. Two people can maneuver it from the elevator to the final placement position without a pallet jack. Confirm the elevator's width and weight rating with your building management before scheduling delivery. White Glove delivery from VMFS includes positioning assistance at the final installation point.

Most units marketed as small vending machines fall into two categories: home or novelty machines with minimal capacity and no commercial refrigeration, or standard commercial machines described as 'compact' that are still 33 to 39 inches wide. This machine occupies the gap: genuine commercial specs (36 spring-loaded slots, active refrigeration, 5-inch LCD screen, VMFS Cloud) at a genuinely narrow width (22.8 inches). It is the only unit in the VMFS catalog that combines commercial-grade operation with a profile narrow enough to pass through a standard doorway. The slim vending machine format does not compromise on commercial specifications.

Yes. The full range is in the combo vending machines collection. The Seaga combo vending machine is the in-stock American-built option at $5,783, 39 inches wide. The combo elevator vending machine is 31.5 inches wide with elevator delivery and FIFO rotation. The XL combo elevator vending machine is the high-capacity 9-channel unit. Use the machine finder quiz to compare by space, volume, and product type.

Ready to fill the gap?

Buy the slim combo vending machine

22.8 inches wide. 330 lbs. 36 spring-loaded slots. 180 to 300 items. Active refrigeration 39 to 77 degrees F. 5-inch HD LCD screen. Cashless payment. VMFS Cloud connected. 1-year warranty. Ships nationwide.

Get a quote for this machine

Pricing depends on configuration. The success team builds a detailed quote for your product mix, location, and delivery. Financing available.

Request a quote

Compare combo options

Need a standard coil machine at a lower price point? Browse all combo machines or take the two-minute finder quiz.

Take the quiz

Run your ROI first

Estimate monthly revenue and payback from your daily volume and pricing before you commit to a configuration.

Calculate ROI
VMFS USA · Slim Combo Vending Machine · 22.8 Inches Wide, Fits Where Others Cannot
36 spring-loaded slots · 180 to 300 items · 39°F to 77°F · 1-year warranty
Browse combo machines · Contact · ROI calculator
