Why operators pick

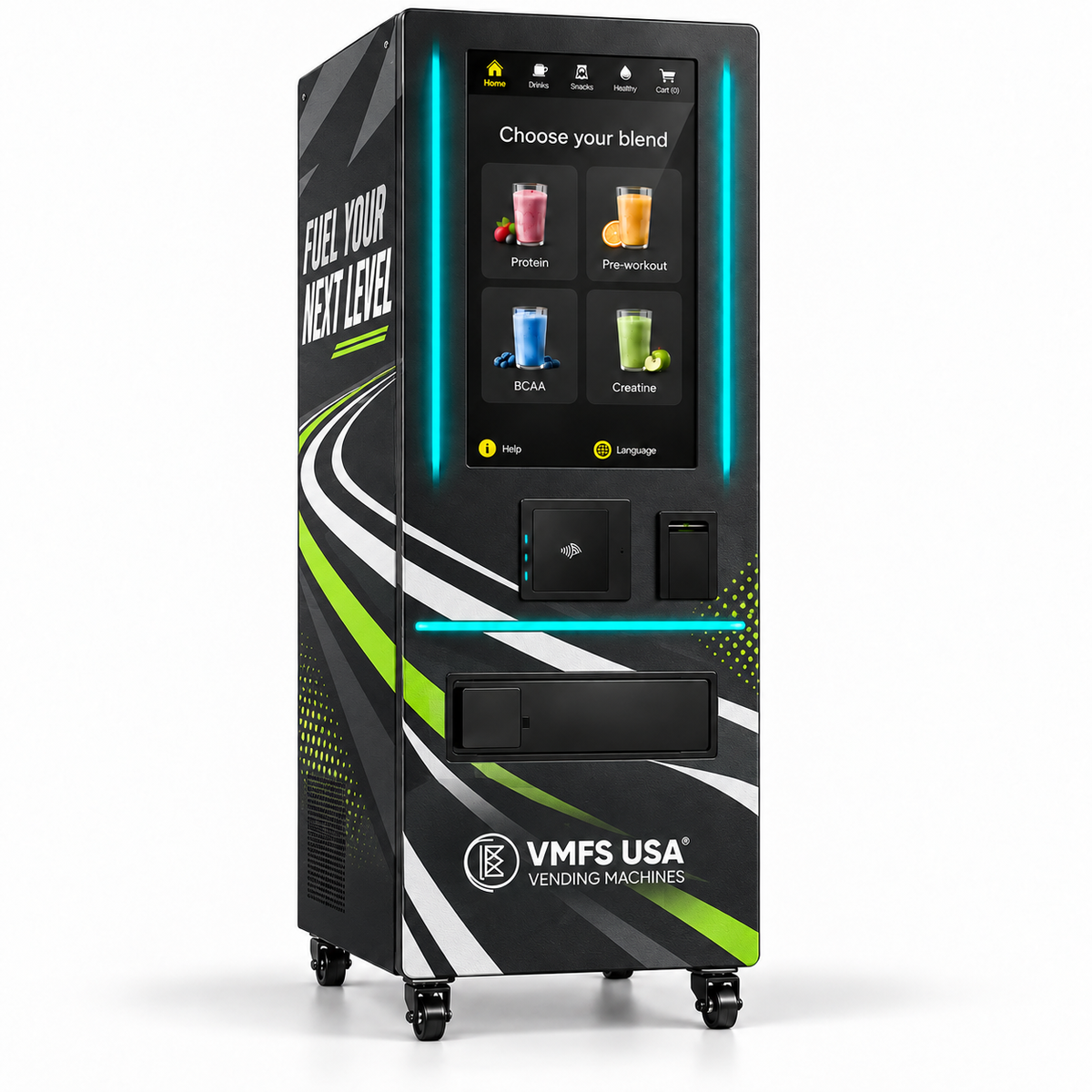

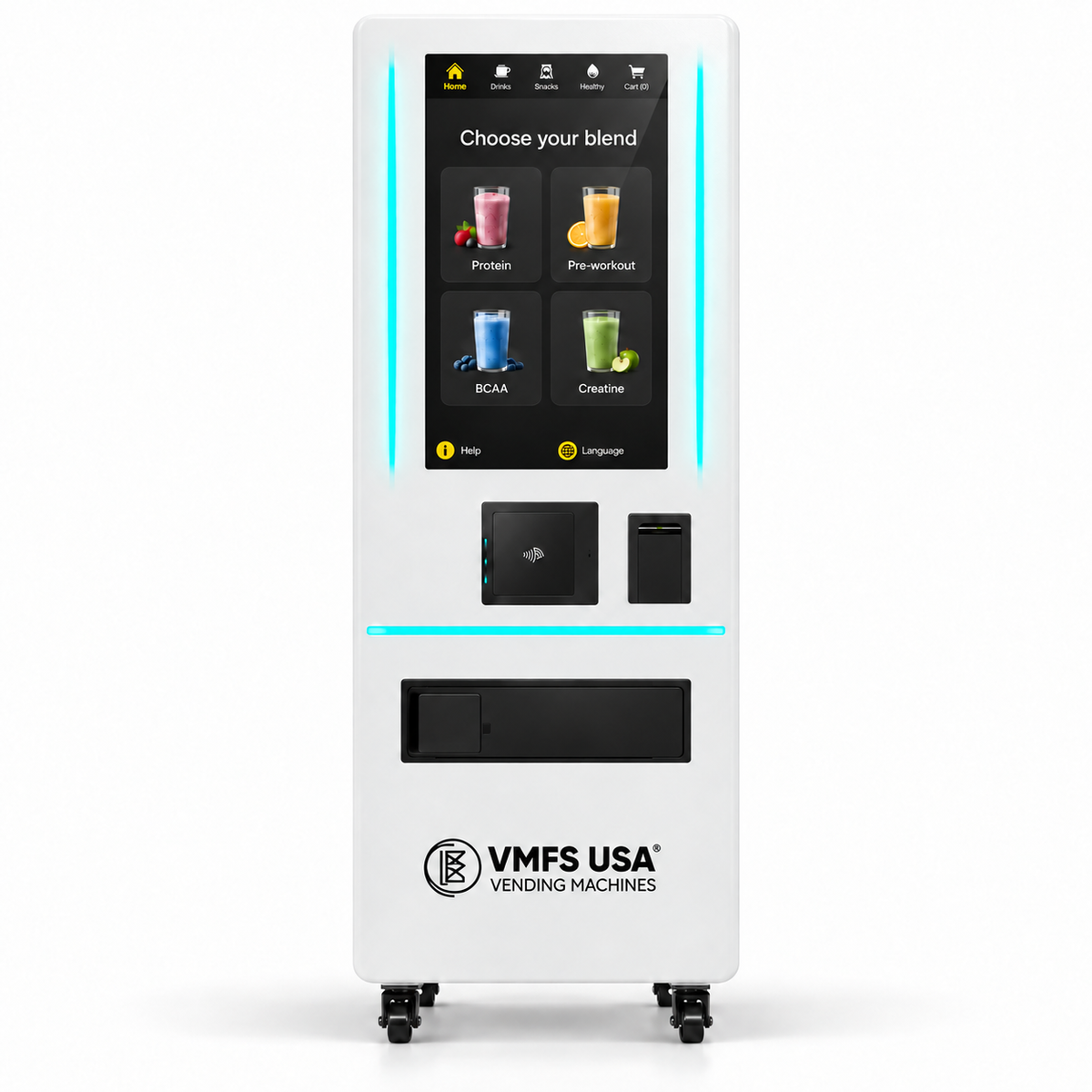

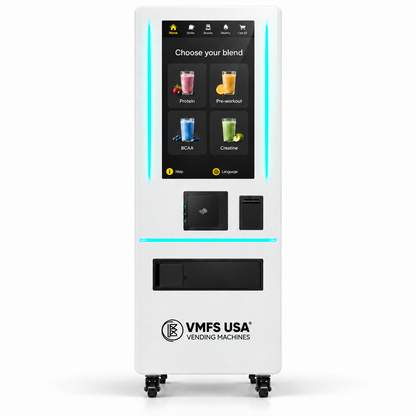

The Protein Shake Vending Machine

3 things decide whether a shake machine earns its floor space: whether the gym will approve it, what it can actually make, and what each cup is worth.

Why gyms say yes

Every drink is mixed inside its own cup, so chocolate never ends up in the next customer's vanilla. The design is pipe free, so there is no internal tubing where liquid can sit, clog or sour between orders.

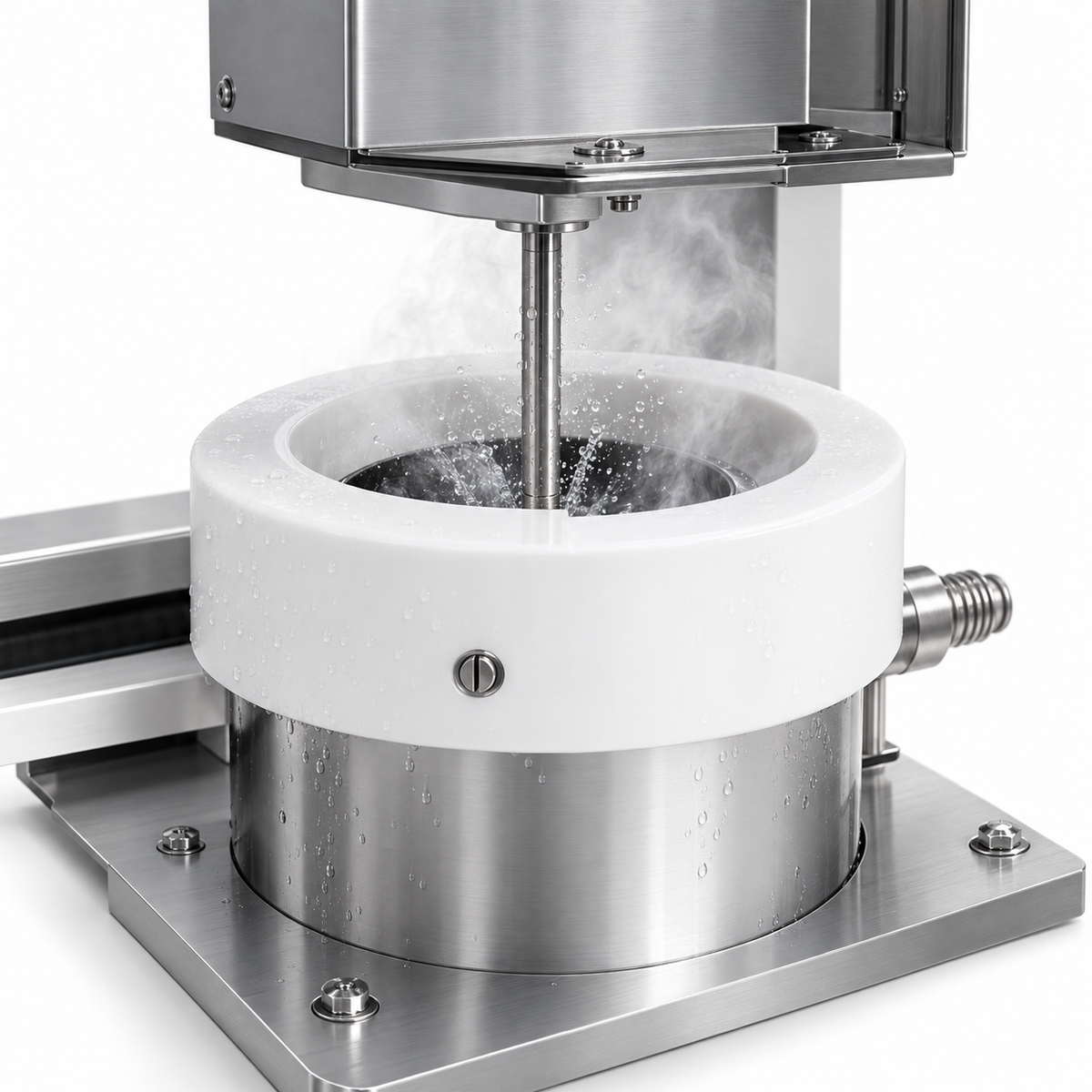

A high temperature, high pressure cycle runs automatically after every cup, and the outlet door seals the dispense area shut when the machine is idle. The food contact parts are made from FDA certified materials. That is the answer to the first question every gym manager asks.

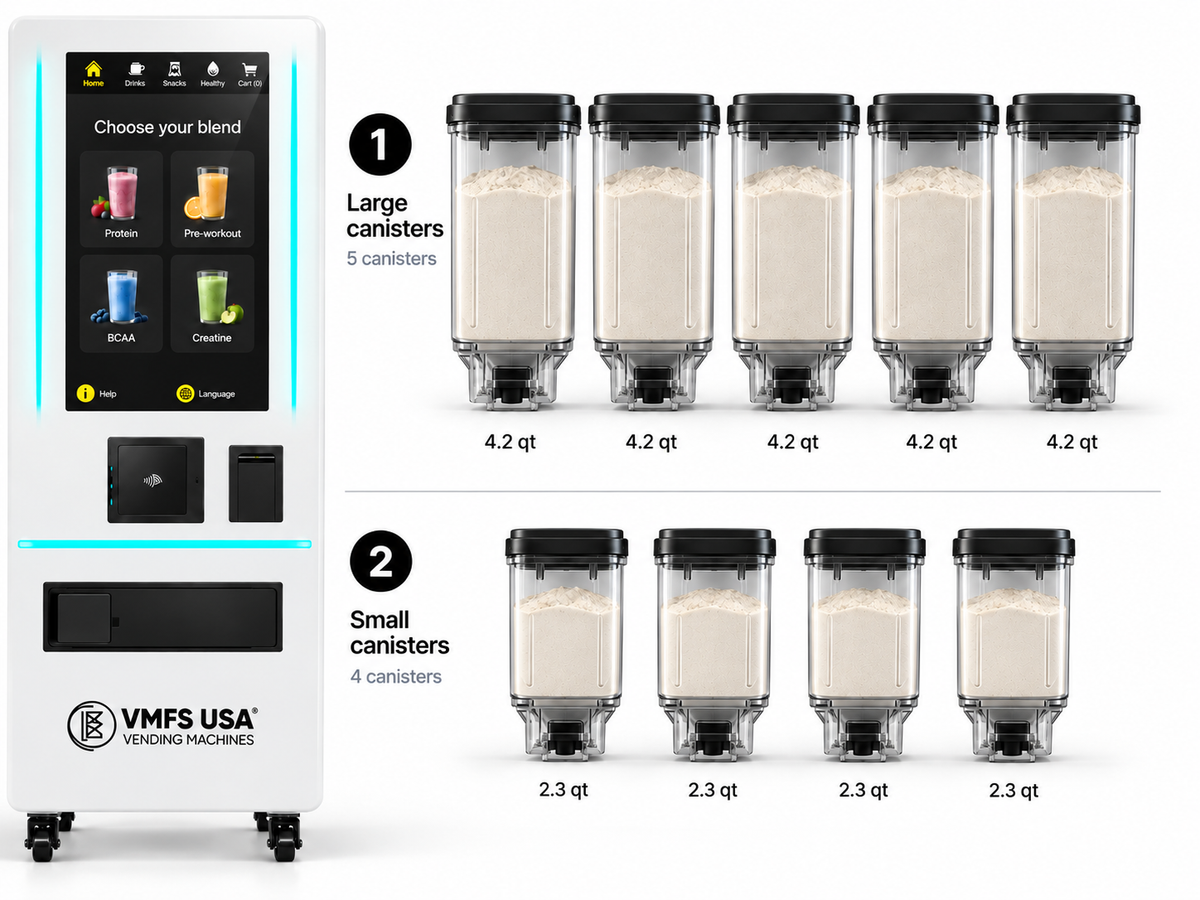

9 canisters, more than 50 recipes

5 large canisters at 4.2 quarts and 4 smaller ones at 2.3 quarts run at the same time. Protein, pre workout, BCAA, creatine and milk powder are the confirmed set, and juice and other instant powders work too.

Flavor does not come from the machine; it comes from the powder you load. A recipe tells the machine which canister to dose, how much water to add and at what temperature, and the system stores more than 50 of them.

About $1.50 in, $3.00 to $3.50 out

Reference cost per cup covers the powder and the cup. Recommended selling price is yours to set against the local market. 90 to 100 cups between restocks, and about 10 minutes of service every 2 to 3 days.

The 32-inch screen sits outside that math. It plays video between orders, which you can sell to nearby businesses or hand to the host gym as part of the placement deal.

Protein Shake Vending Machine Specifications

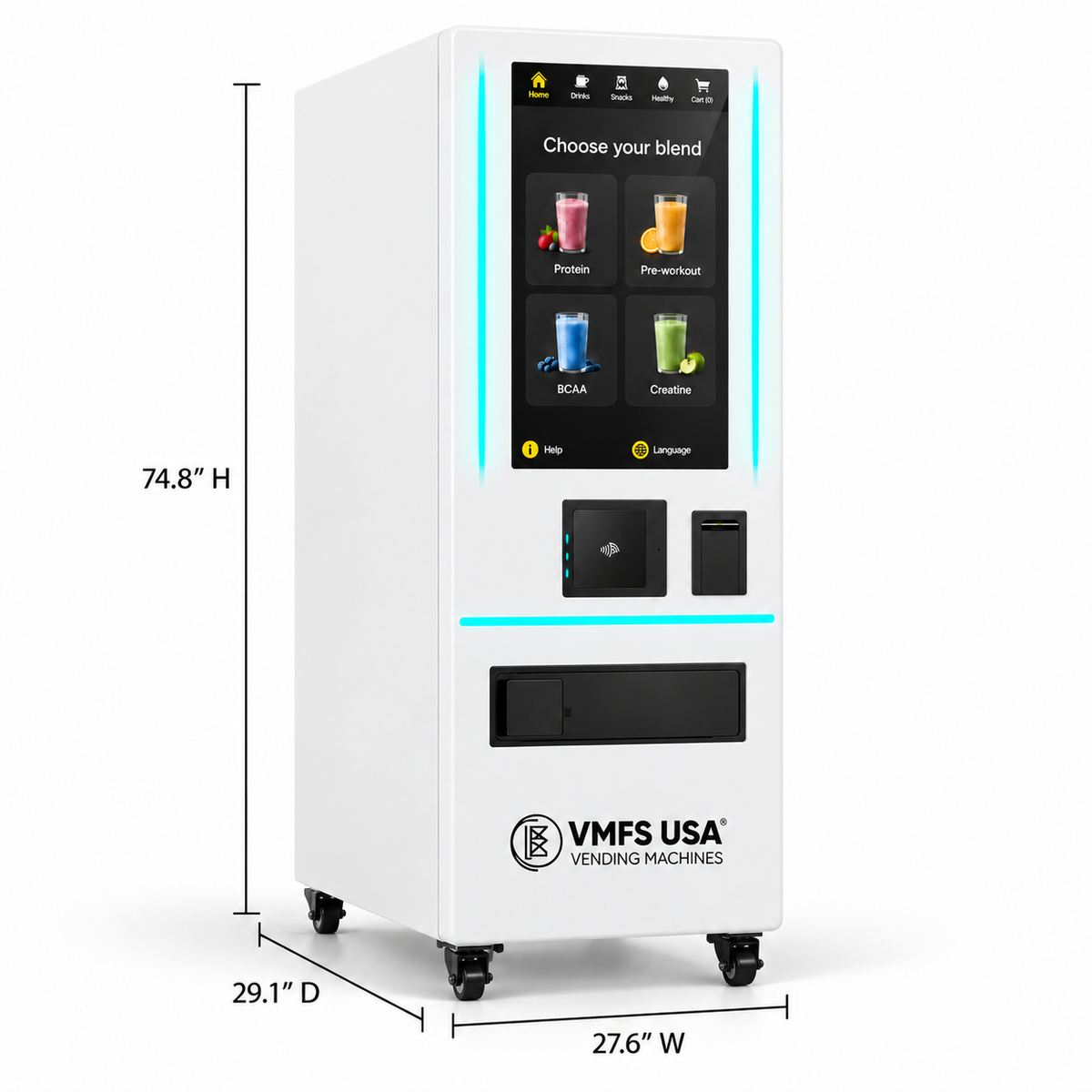

The cabinet stands 74.8 inches tall, 27.6 inches wide and 29.1 inches deep, and weighs about 341.7 lbs. It draws 1,600W, so check the circuit as well as the outlet. Indoor placement with a clean water source within reach. Buy Commercial Protein Shake Vending Machine Today!

Canisters, cups and the menu
Canisters

9 total, 5 at 4.2 qt and 4 at 2.3 qt

Recipes

50+ recipe based flavors

Powders

Protein, pre workout, BCAA, creatine, milk powder, juice and instant powders

Cup sizes

14 oz and 16 oz

Cup dimensions

3.5 in rim. 4.3 in tall at 14 oz, 5.2 in tall at 16 oz

Cup storage

100 to 120 cups

Cup handling

Automatic cup drop plus bring your own cup mode

Display

32 in touchscreen with video advertising support

Languages

Customer menu in any language, operating software in English

Water, mixing and cleaning
Water supply

2 internal reservoirs or a direct purified tap connection

Water output

Hot and cold, temperature adjustable per recipe

Default recipe

16 oz serving, about 10 oz water to 1 oz powder, adjustable

Mixing

Cup by cup inside the cup, pipe free, no cross contamination

Cleaning

Automatic high temperature high pressure cycle after every cup

Outlet

Automatic door seals the dispense area between uses

Payments and connectivity
Cashless

Card and tap to pay readers, mobile wallets

QR payment

Supported

Cash

Coin acceptor with change and bill acceptor, fitted at the factory

Port

MDB port for compatible readers

Connectivity

4G and WiFi

Remote management

VMFS Cloud, paid subscription

Service, power and compliance
Restock interval

Powder, cups and water every 90 to 100 cups

Routine service

About 10 minutes every 2 to 3 days

Consumables

Powders, 14 or 16 oz cups, lids and water, sourced locally

Spare parts

Not needed for a single unit. Recommended at 10 machines or more

Dimensions

74.8 in H x 27.6 in W x 29.1 in D

Weight

About 341.7 lbs

Power

1,600W, 110 to 120V standard US plug

US certifications

FCC, ETL and food-contact components are made from FDA approved materials

International

CE, CB and RoHS

Deployed in

60+ countries, US pilot placements running

Warranty

1 year parts

Note

Payment hardware is configured per order rather than fitted as standard, so cup size, reader type and flavor lineup are confirmed before production. VMFS Cloud is a paid subscription. Certification documentation ships with the order and we can send it ahead if a site needs proof before approving the placement.

In the box

  • vending machine icon

    Protein Shake Vending Machine

  • 2x security keys (traditional lock keys) icon

    2x security keys

  • vending machine user manual icon

    Digital operator's manual

  • power cable icon

    Power cable

Load video: Peak Fuel Vending, 30 days of sales on a VMFS Smart Combo

A real operator's first month with VMFS Cloud

Peak Fuel Vending runs his own route on VMFS machines and filmed his first 30 days. Different machine, same Cloud, same team, and the same numbers you will see on your own dashboard. What arrived, what sold, what did not, and what the machine paid out. His route, his numbers, his opinion.

Load video: VMFS Cloud dashboard walkthrough

This is what makes a 2 to 4X difference for you

A machine that mixes drinks has more to track than one that drops a bag of chips. Recipes, water, powder levels and cup stock all move at different rates. VMFS Cloud keeps all of it on a single screen.

  • Live sales, every machine. Card and mobile in one feed, with stock levels, alerts and machine status.
  • Recipes from your phone. Change a ratio, a temperature or a whole drink and push it to the machine without driving out.
  • Remote pricing. Move a drink from $3.00 to $3.50 and watch whether the site carries it.
  • Promotions. Set a free drink offer for a gym sign up week, then turn it off when the week ends.
  • Advertising. Upload video to the 32-inch screen, set the start and end dates, schedule it per machine.
  • Alerts that matter. Low powder, low cups, waste water full, card reader offline, connection lost.

VMFS Cloud is a paid subscription rather than something bundled with the machine. It is what lets a single operator run several sites without living in a van.

See Cloud plans Already a customer? Log in at cloud.vmfsusa.com

9 Canisters ·

50+ Recipes ·

Cup By Cup Mixing ·

Pipe Free ·

Self Cleaning ·

Hot And Cold Water ·

32-Inch Screen ·

FDA Certified ·

4G And WiFi ·

1-Year Parts Warranty ·

Built For Sites Where People Already Buy A Shake

Gyms and fitness clubs, CrossFit boxes and studios, university rec centers, corporate wellness floors, sports complexes, hotel fitness rooms. Anywhere people finish a workout and want a drink, this machine sells one without a counter or a member of staff.

9 canisters run at once, 5 large and 4 small, so a single cabinet can carry a whey, a plant protein, a pre workout, a creatine and a milk powder at the same time. Recipes do the rest. The machine stores more than 50 of them, each with its own water ratio, temperature, cup size and price, so a single canister can appear on the menu several times at different strengths.

Every drink is mixed inside its own cup. There is no internal tubing carrying liquid around the machine, so nothing sits between orders and there is nothing to clog. A high temperature, high pressure cycle runs before the next customer touches the screen.

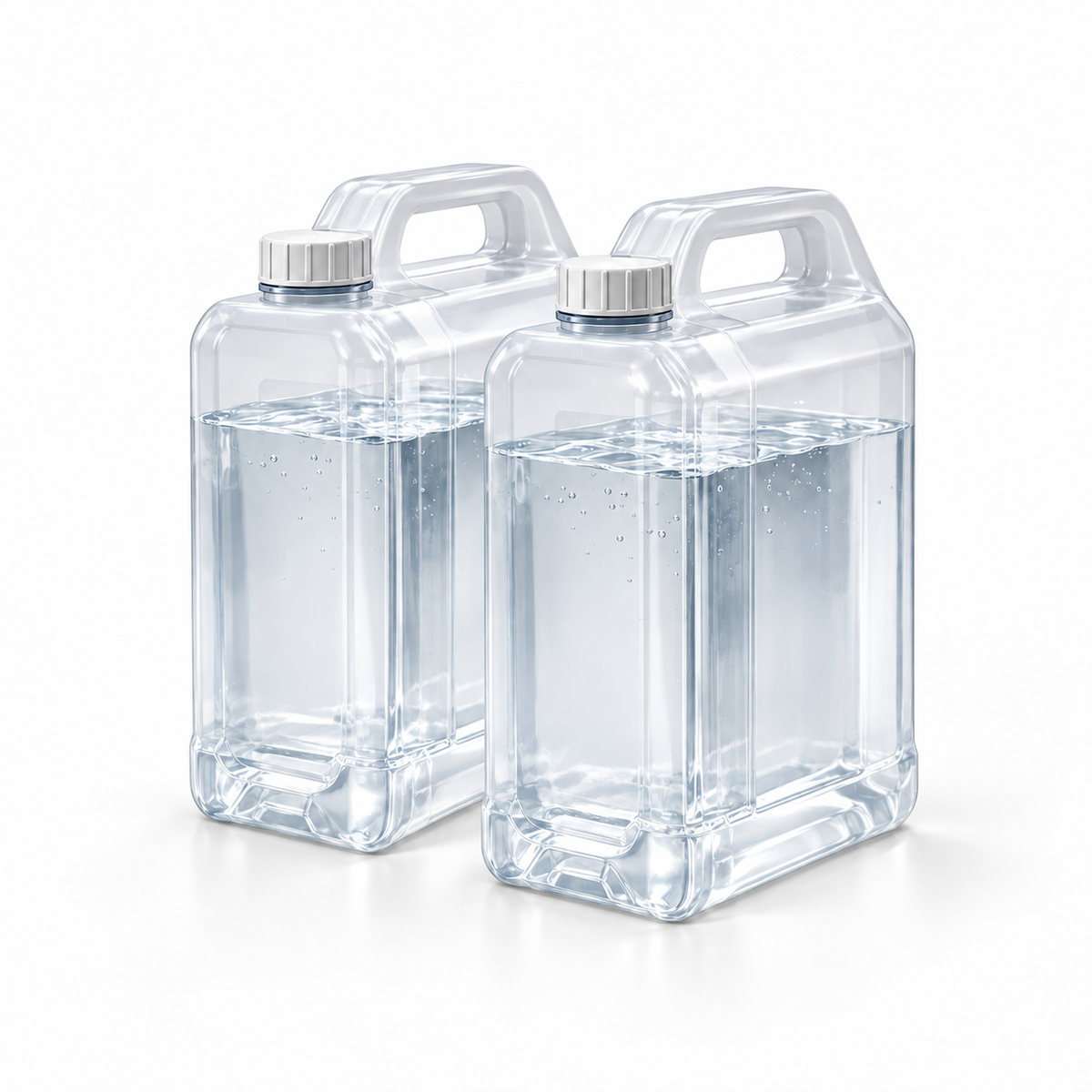

Water comes from 2 internal reservoirs you refill by hand, or from a direct purified tap connection. That first option is what makes this placeable in a gym where plumbing a new line was never going to happen.

Built and developed to VMFS USA standards

The right materials in the right places, hot swappable internals, and a machine specified for the US market rather than imported unchanged. VMFS runs pilot placements across several US climates and site types.

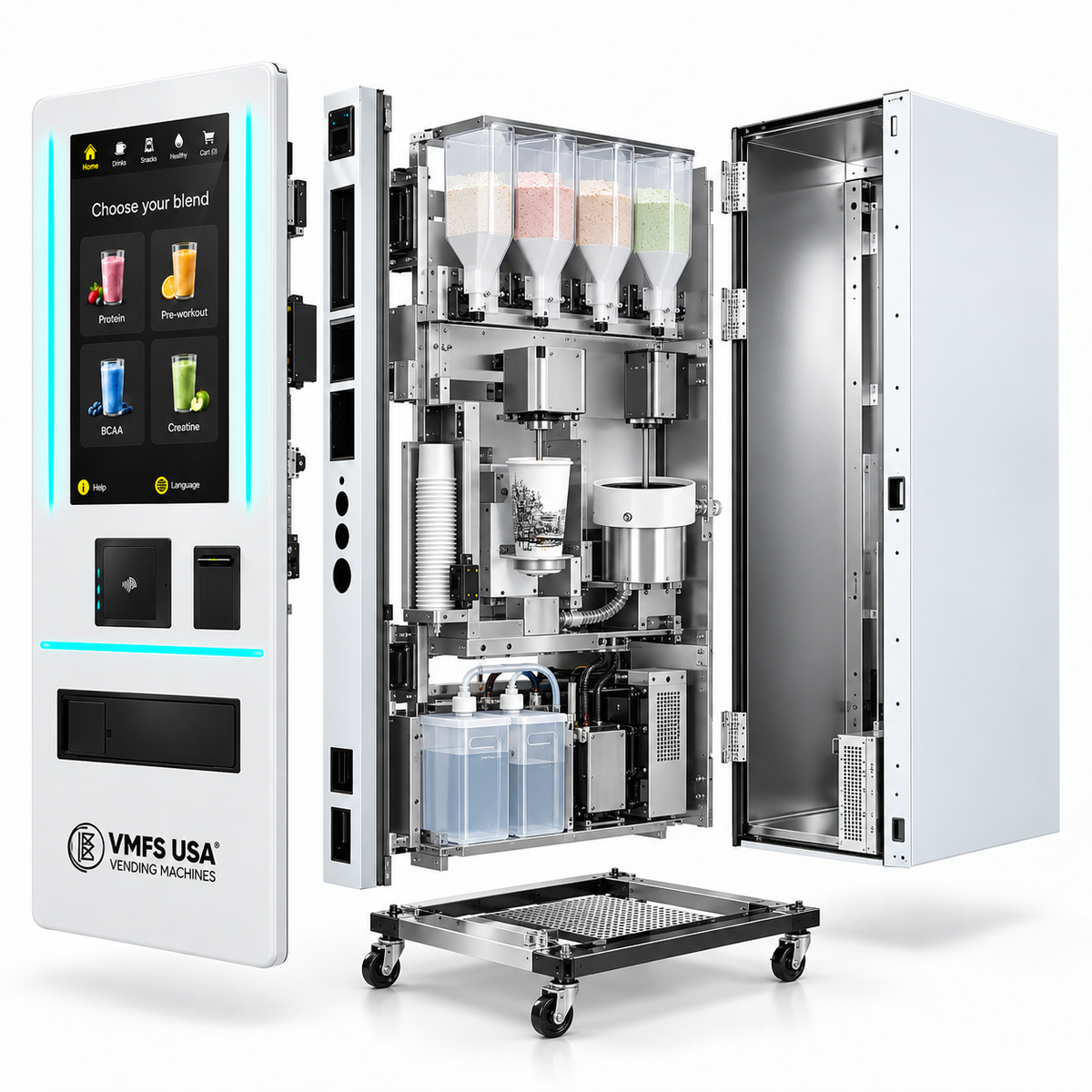

Protein shake vending machine exploded parts view

Day 1 · Delivery

Recipes, product images and prices configured, Cloud account live, tracking sent ahead of the truck. Plug it into a standard outlet on a circuit that carries 1,600W, fill the reservoirs, load the canisters and cups.

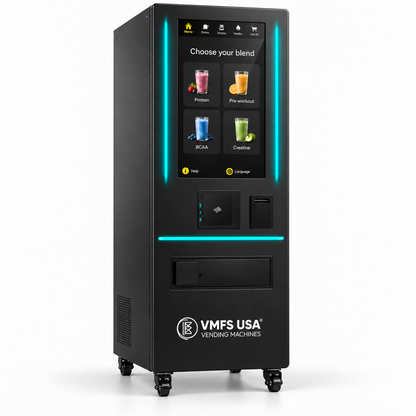

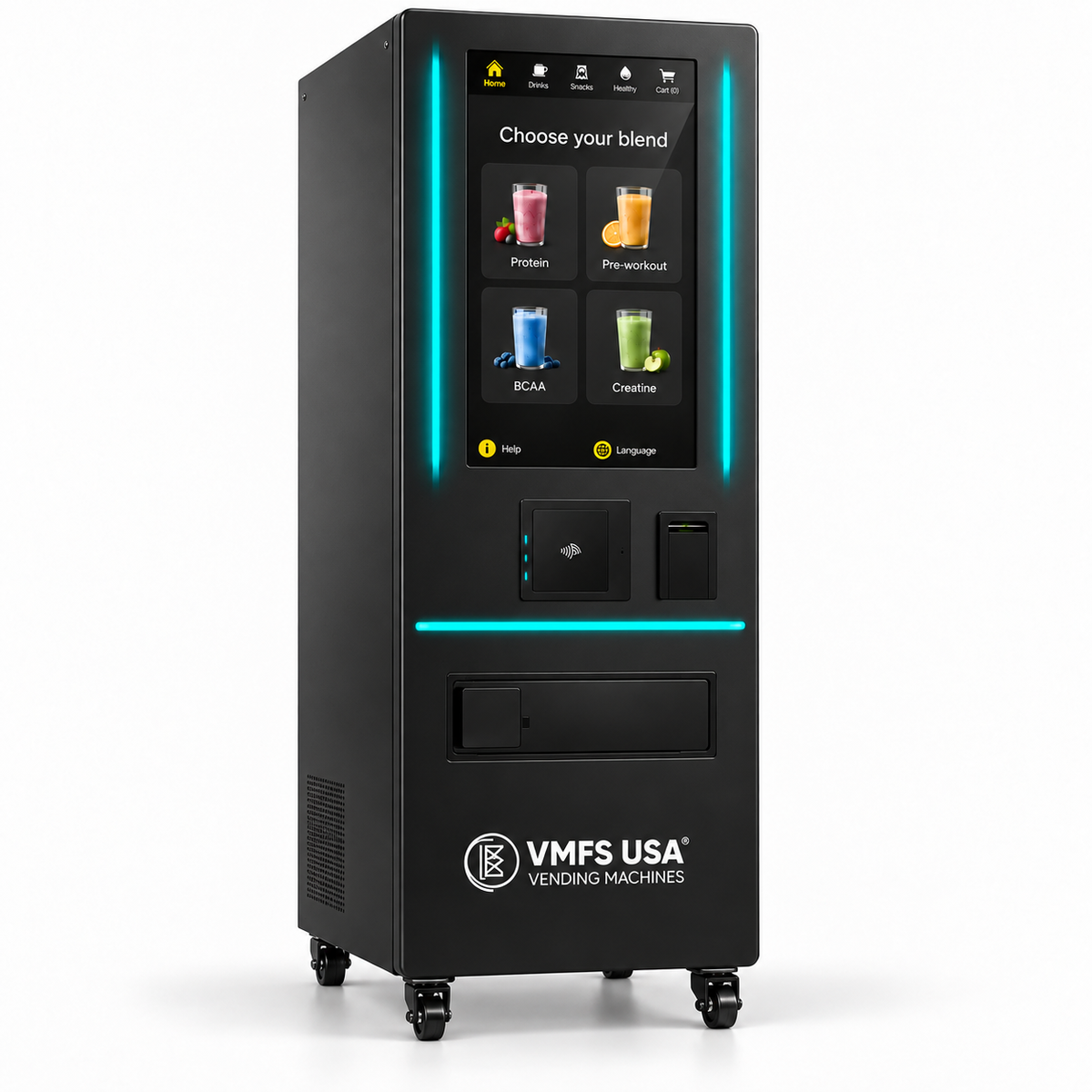

Protein shake vending machine in black

Day 30 · First review

30 days tell you which drinks move and which canister is wasting space. We open the dashboard with you, adjust ratios, and rework the menu and the pricing.

Vending machine security lock and key access

Day 365 · Year one

A 1-year parts warranty from delivery. Quality faults inside that window are replaced. US based technical support has no end date.

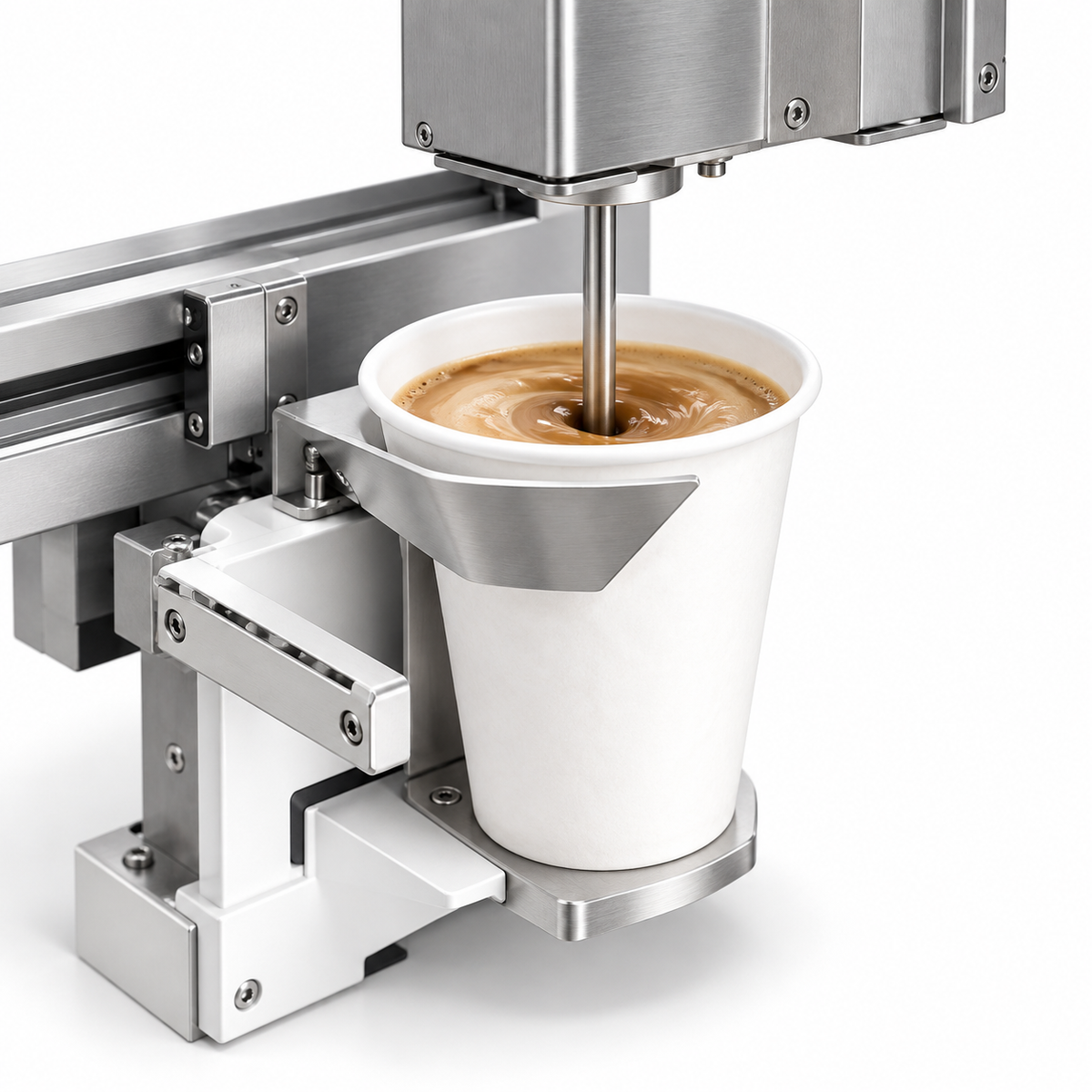

Protein shake vending machine mixing a drink

Year 2 and on

Canisters, mixing components, cup mechanisms, boards and screens stocked in the US. Hot swappable internals mean most faults are a part swap on site.

Vending machine customer support specialist on a headset

Year 5, Year 10

The cabinet, the canisters and the mixing system get serviced, not replaced. Cloud and payments move forward around them.

3 ways to get started

Same machine, same Cloud, same support. Pick the cash flow that fits.

Buy outright

One payment online, by phone or on a Zoom walkthrough.

  • Payment hardware: configured per order
  • VMFS Cloud: paid subscription
  • Shipping: quoted by ZIP

Buy now

Finance

Through our financing partners. Soft credit check, most decisions same day.

  • Down payment: $0
  • Terms: pay in 4 to extended monthly
  • Credit impact to apply: none, soft check
  • Multiple machines: yes, subject to approval

Check your rate

Machine plus placement

No gym signed yet? We open the conversations and evaluate the site before you commit.

  • Location sourcing and vetting: streamlined by VPlaced
  • Contract and delivery to site: streamlined by VPlaced
  • Shipping: quoted by ZIP

Get a placement quote

Every path includes a 30-day satisfaction guarantee and a 1-year parts warranty. Card processing, VMFS Cloud and location commission are the same on every path.

Real Partnership. Not Just a Transaction

The machine runs on its own. These are the pieces most operators end up needing anyway, from the same team. VPlaced opens the gym conversations, checks the traffic, and structures the agreement before the truck loads.

Get Placed

VAdviced vending machine compliance and permits website

Contracts and compliance · VAdviced

Not your lawyer, but VAdviced covers location agreements, sales tax and permit setup, and what to do when a gym wants to change terms.

Get Adviced

VMarketed vending machine marketing website

Marketing · VMarketed

Get more clubs asking for your machine: local listings, outreach to gyms and studios near you, and a website for your vending business.

Get Marketed

  • 5 stars: 6 (55%)
  • 4 stars: 4 (36%)
  • 3 stars: 1 (9%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
Jenny K.
Read the spec sheet, then buy it

I pushed for this and I was nervous about the money. What I learned: read the whole spec sheet before you commit. Payment hardware is configured per order, so tell them your reader and cup size up front. VMFS Cloud is a subscription worth it for remote recipe changes and live sales, but budget for it. It's 341 lbs and needs a 1,600W circuit, so plan the placement. Once it was in, though: the shakes are clean, the screen gets attention, and members photograph their drinks for Instagram, which is free marketing I didn't plan. My only regret is not ordering two.

T
Tyler
10/10, and the cold-vs-hot water sold my morning crowd

I used one of these as a member before I owned a gym, so I already trusted it. As an owner what I appreciate is the consistency, a recipe sets which canister, how much water, and what temperature, so the shake tastes the same every time. The confirmed powders (protein, pre-workout, BCAA, creatine, milk powder) cover everything my crowd asks for, and juice powders work too. It's been solid, no downtime. If you're on the fence, get off it.

B
Bill Hansen
Perfect fit for our rec center

We needed something low-labor for a public facility. The cloud dashboard lets the front desk monitor stock without hand-counting inventory, the automatic cleaning after every cup is a big deal for our health inspections, and the FDA food-contact materials made approval easy. We run reservoir mode since tapping a water line wasn't practical, refilling is simple enough for a student employee. Teens and young adults use it most, but plenty of older folks grab a shake after aqua aerobics. Good value, and the 7-to-21-day shipping came in on the early end.

D
Devon Park
Works great, and the screen nearly pays the rent

The 32-inch screen is almost too much, it lights up our whole back wall at night. but members love it and we've turned it into ad space for a nearby smoothie shop. Tap-to-pay is fast, which matters when there's a line before class. Powder quality is on you: the machine doses what you load, so do your homework on your supplier. Not a knock on the machine, just a tip. Solid build, no issues in three months, and the cup-by-cup mixing means no weird flavor crossover between customers.

K
Kendra
Bought it, like it, a few small gripes

The good: fast, easy to load, members love the hot option, and BYO cup mode noticeably cut our cup costs in month one. It looks professional and hasn't had one mechanical issue. The screen plays video between orders, which we've started selling to a local supplement brand. Small gripes: the recipe interface takes some getting used to if you're not a tech person, and I wish cup storage held a bit more on our busiest days. Neither is a dealbreaker. Budget an afternoon for setup and be patient with yourself.

S
Sandra Okafor
Reliable, and support is actually people

What stands out is the support, a real person on the phone during our first week, walking us through canister calibration. The machine performs well at high volume and the cloud dashboard helps us plan restocks. Docking one star only because getting the powder-to-water ratio right for our thicker protein took trial and error and we wasted some powder learning. A more detailed setup guide on that step would help. Everything else, the pipe-free mixing, the per-cup cleaning, the FDA food-contact materials has been exactly as advertised.

P
Priya S.
Members thought it was a gimmick. Now it's routine.

We launched with a free-shake week and got mobbed. Three months in it's just part of the routine. What I hear most: "I forgot my shaker and didn't have to skip my shake." It stores 100 to 120 cups so we're not restocking constantly, and the dashboard shows powder and cup levels live so nobody's guessing. The hot-water option has been a surprise hit in winter. One small thing, it's 1,600W on a standard 110-120V outlet, so check the circuit before you place it. That's a five-minute call with an electrician, not a dealbreaker.

A
Alex M.
Good machine, but read the fine print on the subscription

The hardware is genuinely good: nine canisters, cup-by-cup mixing, an automatic cleaning cycle after every cup, and it takes card, tap, mobile wallets and QR. My three stars are about expectations, not quality. VMFS Cloud, the remote dashboard that lets you change recipes, pricing and promos and see live sales, is a paid subscription, not included. And payment hardware is configured per order, so confirm your reader type, cup size and flavor lineup before production. Nobody hid that from me, but it's easy to skim past when you're excited about the machine. The machine itself has been reliable.

C
Chris L.
BYO cup mode is the sleeper feature

Our members are picky about their powders and their macros. The fact that I load five different proteins and let them choose strength is exactly what this crowd wanted. But the bring-your-own-cup mode is the quiet winner, half our regulars already carry a shaker, they drop it under the outlet, and every one of those saves me the cost of a cup. At roughly $1.50 in and $3.00-$3.50 out per cup, those savings add up. The screen doubles as ad space we can hand to a local supplement shop. Three months in, no downtime.

D
Dana R.
Does what it says. The reservoir option saved our install.

Our building was never going to let us plumb a new water line, so the two internal reservoirs are the reason this was even possible for us. Refilling is easy enough for staff, though on busy days someone has to check the tank. The machine itself is solid, cup-by-cup mixing, no clumps, hot or cold per recipe, and the 32-inch screen pulls people in. Honest heads-up: this needs about ten minutes of attention every two to three days (water, cups, powders, waste water), and it holds roughly 90 to 100 cups between restocks. If you treat it like a mini shake station it's a workhorse. If you expect zero maintenance you'll be annoyed.

M
Marcus T.
The pipe-free design is why our gym approved it

I'll be honest, the thing that got this past our facility manager wasn't the shakes, it was the hygiene story. Every drink mixes inside its own cup, there's no internal tubing for anything to sit in, and it runs a high-temp cleaning cycle after every single cup with the outlet door sealing shut when idle. That's the exact question our manager asks about any food equipment. Nine canisters means we run a whey, a plant protein, a pre-workout and a milk powder all at once. Setup took an afternoon; the recipe ratios took a little dialing in. VMFS Cloud is a separate subscription, so factor that into your math, but being able to change a recipe from my phone without driving over has already paid for itself.

Which machine is right for you?

Same family, different jobs. Buy Automatic Protein Shake Vending Machine when the site has people finishing workouts and nobody behind a counter to serve them. If your site wants packaged drinks instead, the machines below cover it.

Water Bottle Vending Machine
$4,950.00
Seaga ENV5B combo Vending machine with VMFS USA logo filled with various drinks
Sale price$6,450.00Regular price $7,258.80

Positioning

Cold bottled water and drinks

Positioning

Full-size Seaga beverage machine

Capacity

300 to 400 items

Capacity

240 bottles and cans

Selections

50 slots, adjustable channels

Selections

40 selections

Footprint

42" W × 32" D

Footprint

39" W × 37" D

Best for

Offices, gyms, schools

Best for

Breakrooms, lobbies, schools

Checkout

Cash, coin, card, mobile pay

Checkout

Keypad + coin, bill (card optional)

Running cost

Cloud optional

Running cost

Cloud optional

Protein Shake Vending Machine FAQ

Is this a protein shake maker, a dispenser or a vending machine?

All three. It is a commercial protein shake maker and mixer machine that mixes each drink inside the cup, a protein shake dispenser with 9 powder canisters, and a protein drink vending machine that takes cards and phones with nobody behind a counter. It replaces a staffed shake bar, a blender behind the front desk and a cooler of bottled shakes that expire. Because it stores powder rather than finished drinks, it is a true protein powder vending machine.

How does a fresh protein shake vending machine actually mix a drink?

Powder is dosed from one of 9 canisters straight into the cup, then hot or cold water is added at the ratio set for that recipe. A 16 oz serving runs about 10 oz of water to 1 oz of powder by default. The drink is mixed inside the cup itself, not in a chamber inside the machine. Learn in detail how a Protein shake vending machine works

.

Where do the flavors come from?

The machine holds powders, not flavors. Each canister takes a single powder and a recipe tells the machine which one to dose, how much, how much water and at what temperature. Load a chocolate whey, a vanilla whey and a fruit pre workout and those are your 3 menu items. The 50+ figure is the number of recipes the system stores.

What powders can a protein shake vending machine run?

Protein, pre workout, BCAA, creatine and milk powder are the confirmed set. Juice powders and other instant powders work too. The only real requirement is that the powder dissolves cleanly in hot or cold water without clumping, so test anything unusual before you build a menu around it.

Is a protein shake vending machine hygienic enough for a gym to approve?

Every gym manager asks this. Each drink is mixed cup by cup so one flavor never touches the next. The design is pipe free, so there is no tubing where liquid can sit or sour. A high temperature, high pressure cleaning cycle runs after every cup and the outlet door seals the dispense area while the machine is idle.

Does a protein shake vending machine need a water line?

Not necessarily. A smart protein shake vending machine runs from 2 internal reservoirs you refill by hand or from a direct connection to purified tap water. The reservoir option is what makes it placeable where running a new line is not realistic, though a direct connection cuts your service time on a busy site.

What cups does this protein shake vending machine use and where do I buy them?

A Protein Shake vending machine uses standard 14 oz or 16 oz paper cups, confirmed before production so the dispenser is set for your size. Both sit on a 3.5 in rim, with the 14 oz about 4.3 in tall and the 16 oz about 5.2 in. Ordinary sizes you source locally, not a proprietary cup. The machine stores 100 to 120 at a time.

What if a member brings their own shaker?

That works. The machine drops a cup automatically, or the member places their own shaker under the outlet instead. On a gym floor plenty of regulars prefer their own bottle, and every one of those saves you the cost of a cup.

How often does it need restocking?

A protein shake vending machine needs powder, cups and water every 90 to 100 cups, plus emptying the waste water. Routine service runs about 10 minutes every 2 to 3 days: refill water, add cups, top up powders, clean the wastewater tray, empty the waste bin. Stock levels show live on the dashboard.

What does each cup cost and what should I charge?

Reference cost is around $1.50 per cup including the powder and the cup, with a recommended selling price of $3.00 to $3.50 depending on your market. Those are reference figures, not a guarantee. Your real numbers move with the powder brand you stock and what members already pay at the front counter.

Can the screen make money on its own?

It can, and operators tend to overlook it. The 32-inch display supports video advertising, so drink brands, local trainers or the gym itself can buy screen time. That revenue sits outside the per cup margin and on the right site it covers the rent by itself.

How do gym partnerships usually work?

3 models. Rent the space, where you pay a flat monthly rent and keep all the revenue. Revenue sharing, where there is no rent and you split the take, which is the easiest conversation to open. Or lease the machine to the gym, supplying equipment and powders for a fixed monthly fee while they run it as their own shake bar. Our guide to protein shake vending machines in gyms covers what gym owners expect and how to pitch them.

What payments does it take?

Card and tap to pay readers, mobile wallets and QR. A coin acceptor with change and a bill acceptor are available, fitted at the factory. An MDB port is reserved for compatible readers. Payment hardware is configured per order, so tell us what your sites expect and we will quote it with the machine.

What power and space does it need?

A standard 110 to 120V outlet on a circuit that carries 1,600W. The cabinet is 74.8 in tall, 27.6 in wide and 29.1 in deep at about 341.7 lbs. Indoor placement with stable network coverage and access to clean water.

Do I need to hold spare parts?

Not for a single unit. We only recommend a parts kit once you are running 10 machines or more, where a same day swap is worth more than stock sitting on a shelf.

Is this machine certified for use in the United States?

Yes. FCC, ETL and food contact components are made from FDA approved materials for the US market, with CE, CB and RoHS internationally, and deployments across more than 60 countries. VMFS also runs pilot placements across several US climates and site types, which is how we specify equipment for this market.

What warranty and support come with it?

A 1-year parts warranty from delivery, plus lifetime US based technical support. Onboarding covers operator manuals, video tutorials, dashboard training and maintenance training, with a dedicated channel once you are running.

What is the protein shake vending machine price?

Our protein shake vending machine is $14,000. Full-size fresh-mix machines sold in the US list for about $7,500 to $14,000, and factory-direct imports start around $3,000 to $4,000 before freight, import duties and US certification. Shipping is quoted by ZIP code, payment hardware is configured with each order, and VMFS Cloud is a separate subscription. Financing is available. See the full protein shake vending machine price, running costs and payback.
