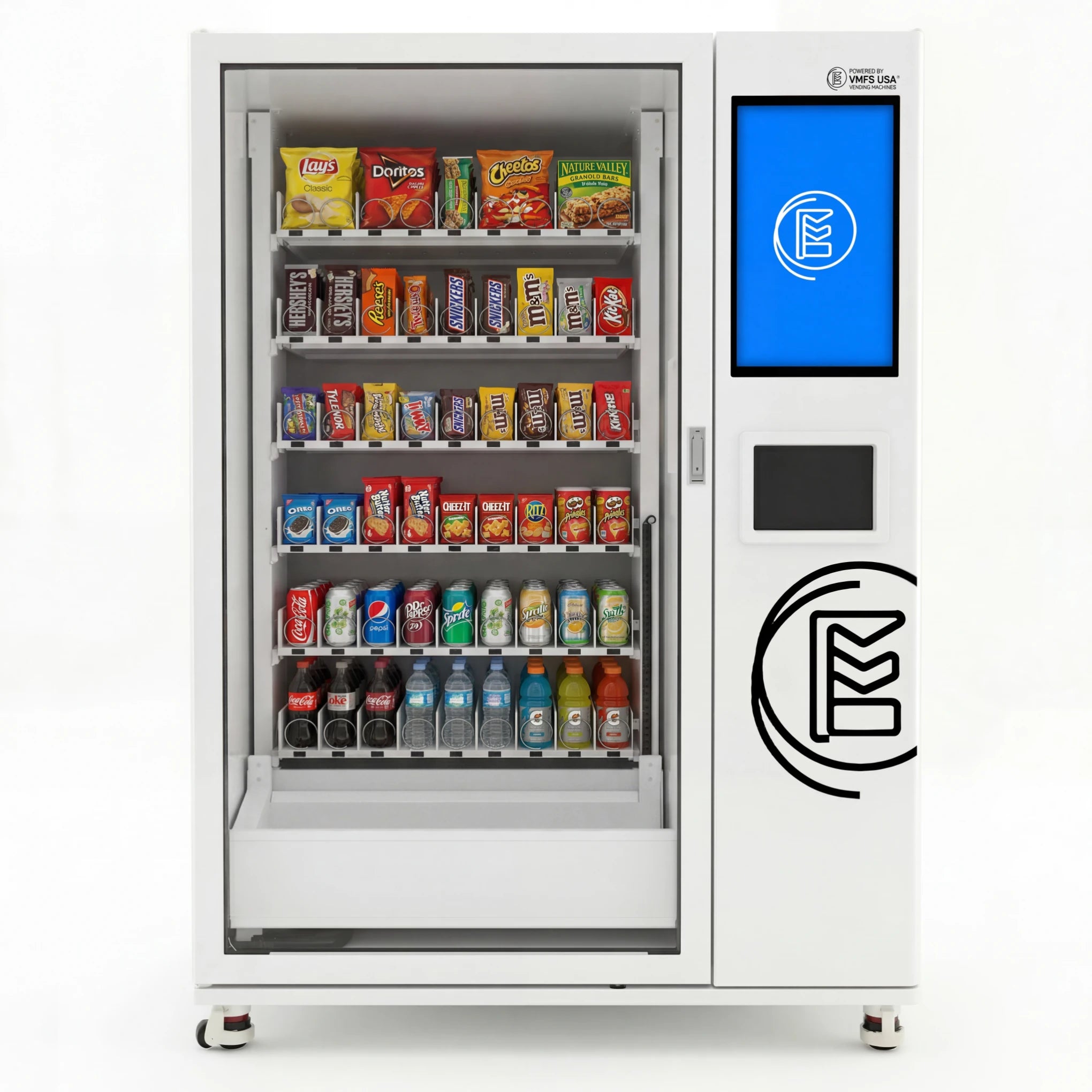

Smart Elevator Vending Machine

A smart elevator vending machine is a full-size vending unit that combines elevator-guided product delivery, a large HD touchscreen interface, cloud-connected remote management, and a payment terminal that accepts cards, mobile wallets, RFID access cards, and QR codes. The elevator delivery system guides every product to the collection point without dropping it, which eliminates the product damage and failed vend issues common with coil-based machines. The 32-inch full HD screen manages the buying experience during transactions and runs advertising content between transactions, creating two distinct revenue streams from one machine.

For the right location, yes. The payback calculation changes when advertising revenue is included alongside vending revenue. A machine in a 200-person office lobby generating 400 daily pass-by events at a modest $8 CPM advertising rate adds $100 to $150 per month in ad income on top of vending sales. At a high-traffic outdoor or corporate location with premium advertising partners, that monthly ad figure can reach $300 to $500. The RFID payment capability also consistently increases transaction volume at corporate and healthcare sites where frictionless badge-tap payment removes the friction from the standard payment flow. At low-traffic locations where neither the advertising nor the RFID differentiators matter, a standard combo machine at a lower price point is the more cost-effective choice.

The 32-inch full HD screen displays your loaded ad content whenever no active transaction is occurring. The operator uploads campaigns through the VMFS Cloud dashboard. Content can be images, video, or slideshow format. The operator sells the display time to advertisers (local businesses, national brands, corporate partners, or internal company communications teams) and collects the ad fee. The machine tracks display time and impression data through the cloud. VMarketed helps VMFS operators sell their ad inventory and structure advertiser agreements.

RFID (Radio Frequency Identification) payment allows buyers to tap an access card, employee badge, or RFID-enabled credential against the payment terminal to complete a vending transaction. The card is preloaded with a payment balance, typically through a corporate benefits or campus account system. Sites that benefit most from an RFID vending machine setup are corporate campuses where employees use access cards for building entry, government facilities with badge access systems, healthcare environments where staff carry ID badges, and universities with campus card programs. RFID reduces transaction time from 10 to 15 seconds for a card or phone payment down to 2 to 3 seconds for a badge tap, which meaningfully increases throughput during peak usage windows.

The digitally controlled range runs from 35 to 104 degrees F. The lower end (35 to 41 degrees F) covers refrigerated beverages, dairy products, and cold food items at standard serving temperature. The mid-range (50 to 77 degrees F) covers ambient storage for shelf-stable snacks and packaged goods. The upper range (77 to 104 degrees F) covers warm food items including hot sandwiches, pastries, and heated pre-packaged meals. Most commercial vending machines in this category cap at 77 degrees F. The additional 27-degree upper range on this unit opens product categories that standard machines cannot serve, which increases the per-transaction revenue ceiling for operators who stock warm food alongside cold beverages and snacks.

Yes. The heavy-duty steel frame carries a weather-resistant coating designed for exposure to moisture, temperature variation, and UV. Appropriate outdoor placements include covered building entrances, transit shelters, hotel outdoor areas, sports venue concourses, and covered walkways. Fully exposed placements (direct rainfall, standing water) are not recommended. Confirm the specific outdoor installation conditions with the VMFS Customer Success Team before ordering for an outdoor site.

The combo elevator vending machine uses the same elevator delivery principle but does not include the 32-inch full HD touchscreen, the RFID and QR code payment terminal, the advertising screen capability, or the weather-resistant outdoor coating. The combo elevator unit is the right choice for operators who need soft-drop delivery and FIFO rotation without the smart interface premium. This smart elevator unit is the right choice when advertising revenue, RFID payment, the full payment stack, or outdoor deployment are part of the operator's plan.

A touchscreen vending machine uses a digital display panel for customer product selection instead of a physical keypad or button matrix. This machine runs a 32-inch full HD touchscreen, the largest display in the VMFS vending lineup. The touchscreen handles product browsing, selection, payment confirmation, and receipt. Between transactions, the same screen runs advertising content. The display is remotely managed through the VMFS Cloud dashboard.

The machine holds up to 800 items at small-format products and approximately 300 to 400 items at larger product dimensions. The approximately 54 adjustable slots are set by the operator to match the height and width of the specific products being stocked. Small items like protein bars, energy shots, and single-serve snack packs allow more items per channel. Taller items like 16 oz bottles and boxed meals reduce the items per channel but the slot count remains the same.

The machine connects to the VMFS Cloud dashboard for remote monitoring of sales by product and slot, temperature readings, payment type breakdowns, vend failure logs, and advertising screen display data. Operators update pricing, swap out ad content, and view fleet-level performance across all machines from one login without visiting any site. Refill alerts push to the operator's phone before any slot empties.

Standard vending machine compressors run at a fixed duty cycle regardless of the internal temperature load. The smart cooling logic on this machine monitors the internal temperature continuously and adapts the compressor's workload to what is actually needed at each interval. During low-load periods (door closed, stable temperature, cool ambient environment), the compressor runs at reduced duty. During high-demand periods (door recently opened, high ambient temperature, heavy refrigerated product load), the compressor ramps up. The result is lower average energy consumption compared to a fixed-cycle compressor at the same refrigeration target temperature.

Every unit ships with a 1-year standard warranty covering parts and labour. Extended 2-year and 3-year warranty options are available. US-based support is available directly at (305) 395-3997 or info@vmfsusa.com. The VMFS Customer Success Team provides setup support, RFID integration guidance, cloud dashboard onboarding, and ongoing fleet management support for multi-machine operators.

Yes. This is a fully refrigerated vending machine with a digitally controlled temperature range running from 35 to 104 degrees F. The lower end of that range (35 to 41 degrees F) holds beverages, dairy, and fresh food at standard serving temperature. The cooling system uses an energy-efficient compressor with smart cooling logic that adapts the refrigeration load to actual demand rather than running at a fixed duty cycle. The cabinet supports refrigerated beverages alongside ambient and warm product zones in the same unit. For operators who need a refrigerated vending machine that also vends hot food, snacks, and specialty items from one footprint, this is the configuration that handles all three.

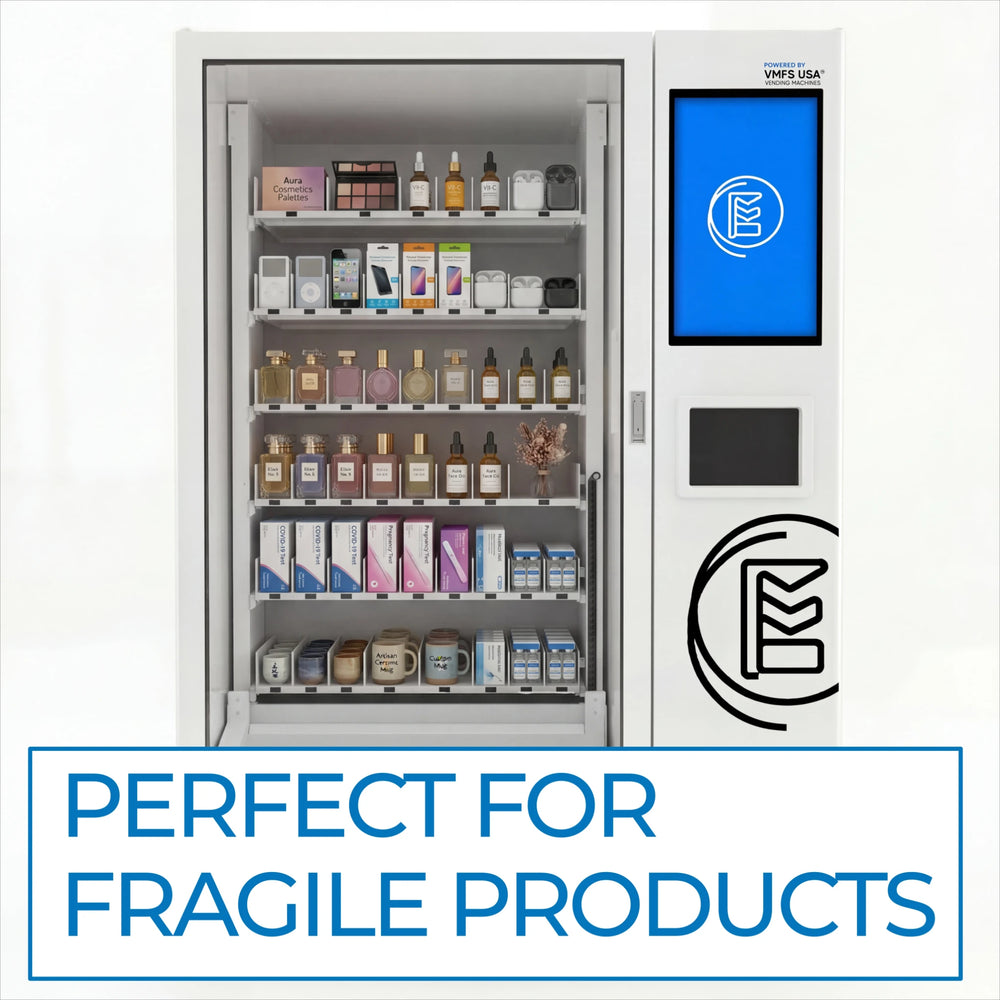

Yes. The approximately 50 adjustable slots are operator-configurable for slot height and channel width, which means the unit functions as a vending machine for big items or large products that fixed-pitch coil machines cannot vend. Tall bottled beverages, wide-base aluminium cans, glass bottles, oversized snack bags, boxed meal kits, premium retail products with non-standard dimensions, and specialty items all fit when the slots are configured for them. The elevator delivery system lowers each product to the collection point without dropping it, so big or fragile items arrive intact. For operators specifically looking for a vending machine for large items at a premium placement, this is the unit in the VMFS lineup sized and engineered for that use case.
